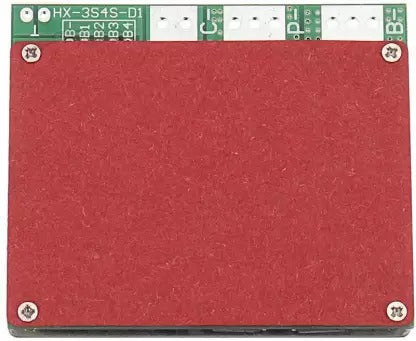

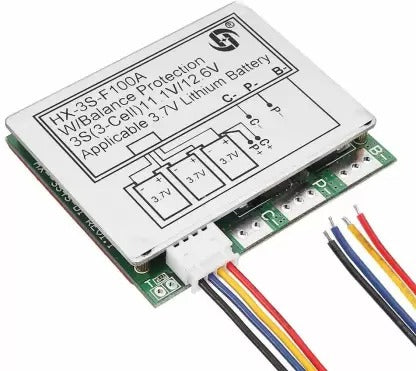

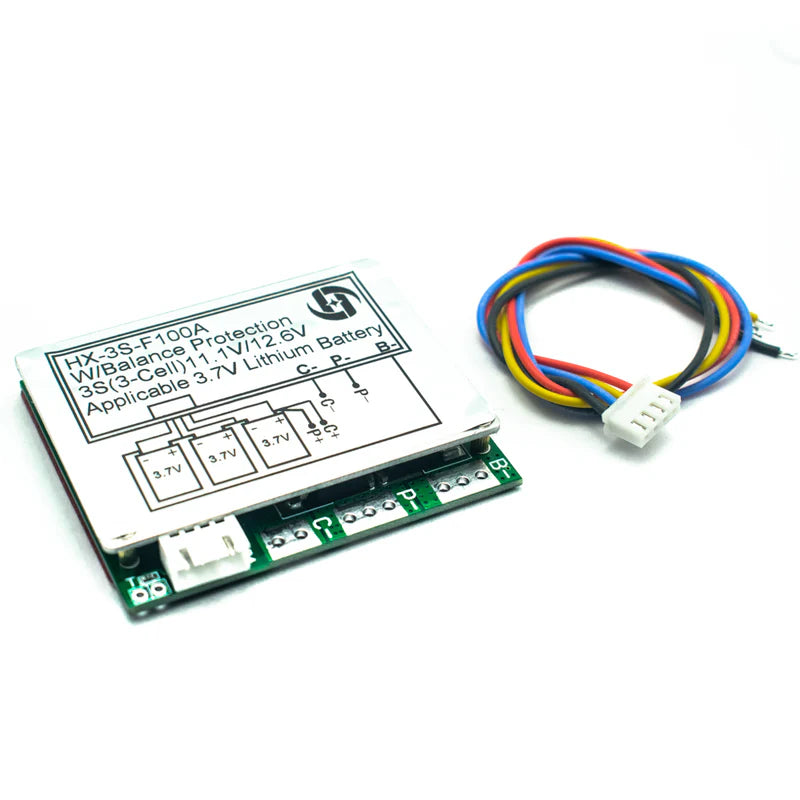

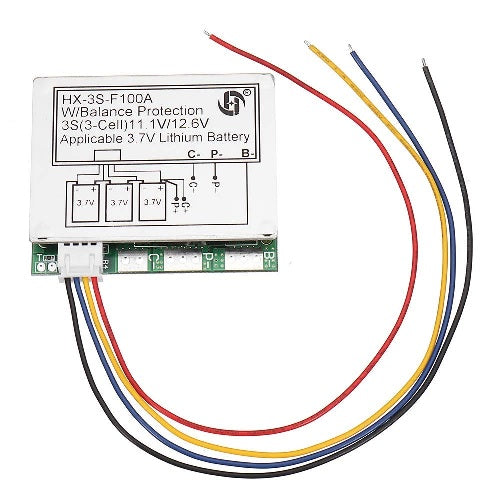

3S 100A BMS PCB 11.1V 12.6V Li-ion Lithium ion 3 cell 18650 Battery Protection Board

3S 100A BMS PCB 11.1V 12.6V Li-ion Lithium ion 3 cell 18650 Battery Protection Board

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp
Parameter Specification
Battery Configuration 3 Series (3S) Li-ion / LiPo Cells (18650 compatible)
Nominal Voltage 11.1V (3 × 3.7V cells)
Fully Charged Voltage 12.6V (3 × 4.2V cells)
Maximum Continuous Current 100A
Peak Current Typically 120A (short duration, varies by model)
Charge Cut-off Voltage 4.2V ± 0.05V per cell
Discharge Cut-off Voltage ~2.5V – 3.0V per cell (varies, typically 2.7V recommended)
Balance Current Typically 100mA – 150mA per cell
Operating Temperature Charge: 0°C to 45°C; Discharge: -20°C to 60°C
Protection Features Overcharge, over-discharge, over-current, short circuit protection, cell balancing
Dimensions Varies by manufacturer, typically around 60mm x 40mm
Connection Type Spot welding pads or solder pads for battery and load wiring
Communication Interface Usually none (passive BMS), some advanced models may have UART or I2C
Weight Approx. 10-20 grams



Feature:

  • Battery Configuration: Supports 3-series (3S) lithium-ion cells (3 x 3.7V nominal, 12.6V fully charged).

  • High Current Rating: Continuous discharge current up to 100A, suitable for high-power applications.

  • Overcharge Protection: Prevents cells from charging beyond safe voltage limits to extend battery life.

  • Over-discharge Protection: Stops discharge when cells reach a minimum voltage to prevent damage.

  • Overcurrent / Short Circuit Protection: Protects against excessive current draw and short circuits for safety.

  • Balance Charging Function: Balances the voltage of each cell during charging to maintain battery health and performance.

  • Temperature Protection: Monitors battery temperature to avoid overheating during charge/discharge.

  • Low Quiescent Current: Minimal self-discharge current to maximize battery standby time.

  • Compact and Durable PCB: Designed for robust mechanical and electrical performance in battery packs.

  • Wide Operating Voltage Range: Typically 9V to 13V (depending on battery state).

  • Suitable for 18650 Lithium-ion Cells: Commonly used in electric bikes, scooters, power tools, and DIY battery packs.

Drscription:

This 3S 100A Battery Management System (BMS) PCB is designed for protecting and managing lithium-ion (Li-ion) or lithium-polymer (LiPo) battery packs composed of three cells in series (3S), typically with nominal voltage of 11.1V and full charge voltage of 12.6V. It is ideal for high current applications requiring reliable battery protection and safe operation.

The BMS monitors each cell individually to prevent overcharging, over-discharging, over-current, short circuits, and balancing issues, ensuring longevity and safety of your 3-cell 18650 battery pack. With a high continuous current rating of 100A, this BMS is suitable for demanding devices like electric bikes, scooters, power tools, and other high-power battery-operated equipment.

Compact and robust, the board features multiple safety protections and precise cell voltage monitoring to maintain battery health while allowing efficient power delivery. It supports balanced charging and discharging, preventing cell imbalance that could reduce battery capacity or cause damage.
