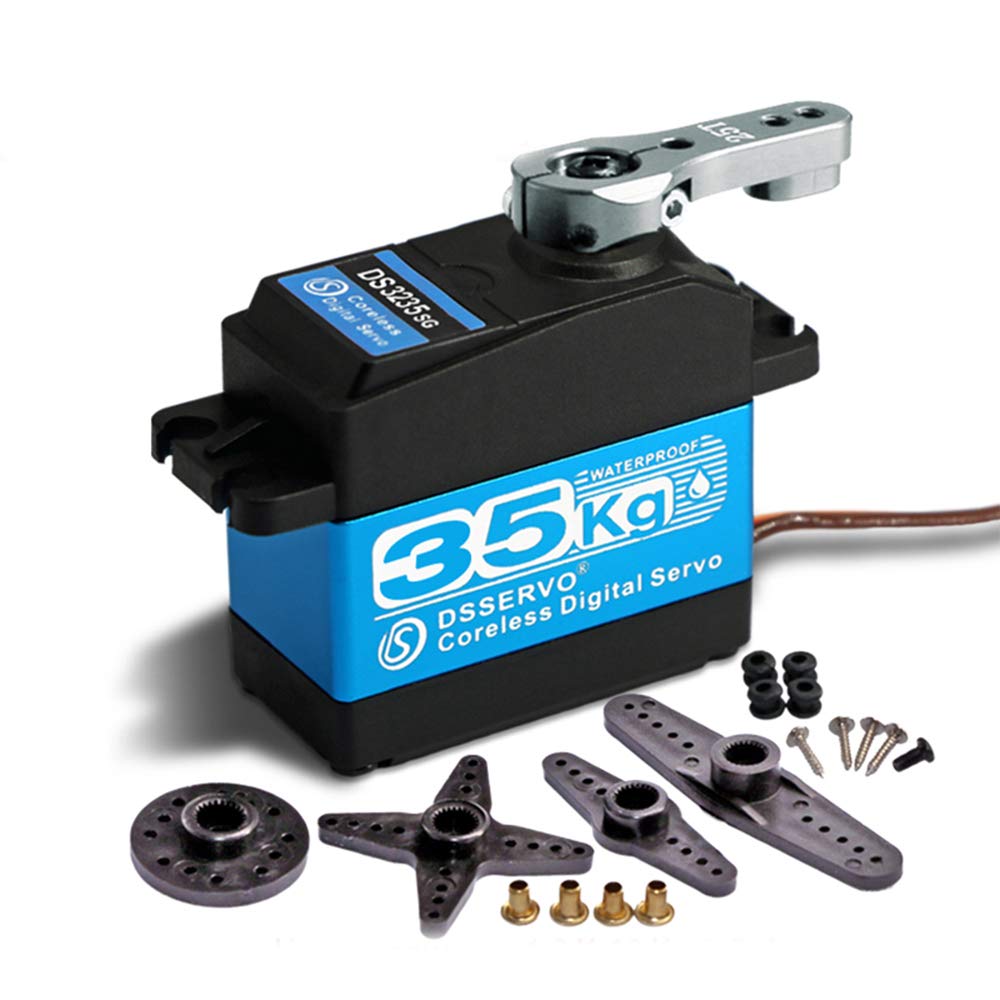

35kg high Torque Coreless Motor servo Metal Gear Digital and Stainless Steel Gear servo arduino servo for Robotic DIY,RC car (Control Angle 180°)

35kg high Torque Coreless Motor servo Metal Gear Digital and Stainless Steel Gear servo arduino servo for Robotic DIY,RC car (Control Angle 180°)

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Specification Details
Model 30Kg Digital High Torque Servo
Torque 26kg·cm @ 6.0V / 30kg·cm @ 7.4V
Operating Voltage 6.0V – 8.4V
Speed 0.18 sec/60° @ 6.0V0.15 sec/60° @ 7.4V

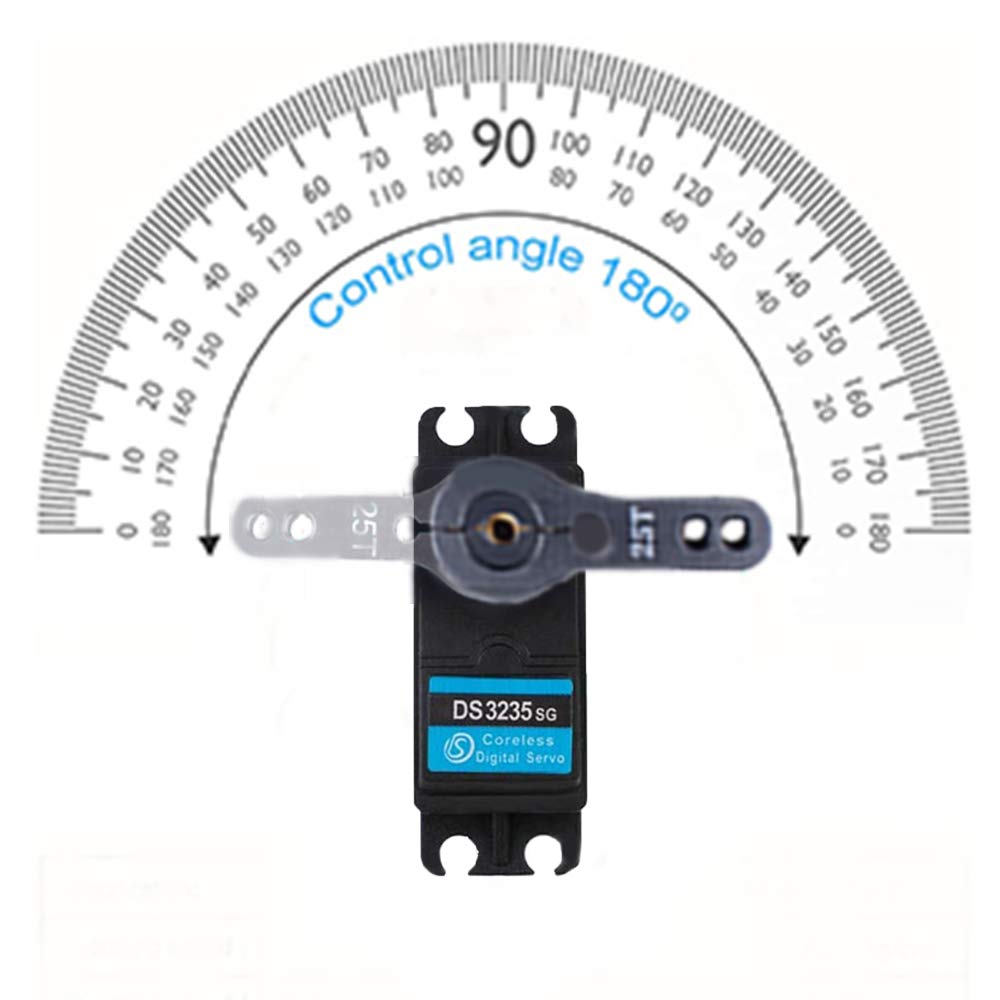

Rotation Angle 180° or 270° (model-dependent)
Motor Type Coreless or Brushed Motor
Gear Type Full Metal Gears
Control Signal PWM (Pulse Width Modulation)
PWM Pulse Range 500 – 2500 μs
Signal Frequency 50Hz – 330Hz
Dead Band Width ≤ 3 μs
Bearings Dual Ball Bearings
Connector Type 3-pin (Signal, VCC, GND)
Weight ~150g – 160g
Case Material CNC Aluminum Alloy (Middle) + Plastic Ends
Dimensions Approx. 40.5 x 20 x 40.3 mm



Features:

  • High Torque Performance:
    Generates up to 30 kg·cm torque at 7.4V, making it ideal for large mechanical systems, robotic arms, and steering mechanisms.

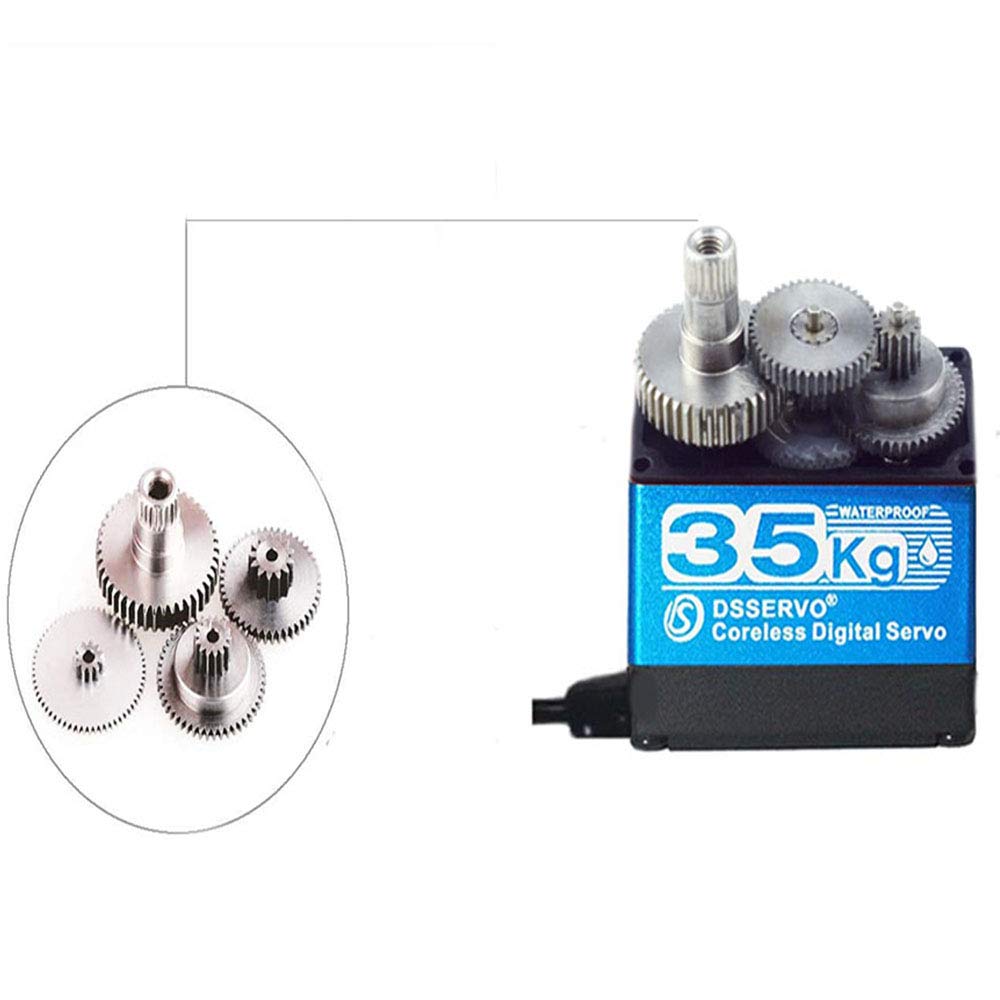

  • Metal Gear Construction:
    Equipped with hardened steel or CNC aluminum alloy gears for strength, precision, and wear resistance.

  • Fast and Smooth Operation:
    Delivers a quick response time with stable speed and strong holding power.

  • Wide Voltage Range:
    Operates smoothly on 6V to 8.4V, compatible with various power sources including LiPo batteries.

  • Digital Control:
    Offers precise motion control and a smaller dead band compared to analog servos.

  • Dual Ball Bearings:
    Ensures smooth shaft rotation, reduced friction, and longer lifespan.

  • Heavy-Duty Build:
    Features a CNC-machined aluminum middle shell for better heat dissipation and rugged use.

Description:

The 30Kg Digital Servo Motor is a heavy-duty, high-precision actuator designed to deliver strong torque, accurate positioning, and durability in demanding robotics and RC applications. Engineered with a metal gear train, dual ball bearings, and a robust aluminum case, it excels in high-load and long-duty cycle environments.
