3518 6-35V QC4.0 QC3.0 USB Type-C Quick Charge Module Step Down Buck Boost Converter Module for Mobile Phone with 24AWG Wire

3518 6-35V QC4.0 QC3.0 USB Type-C Quick Charge Module Step Down Buck Boost Converter Module for Mobile Phone with 24AWG Wire

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Express Delivery FedEx
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • On Time Delivery
  • Worldwide Order Delivery
  • Delivery Location
Parameter Specification
Model 3518 USB Type-C Quick Charge Module
Input Voltage DC 6V to 35V
Output Voltage (Auto-Negotiated) 5V / 9V / 12V / 15V / 20V (depends on device compatibility)
Output Current Up to 3A (depends on output voltage and thermal conditions)
Quick Charge Standards Supports QC2.0, QC3.0, QC4.0, Huawei FCP, AFC, PD (for Type-C)
Output Interface USB Type-C Female Port

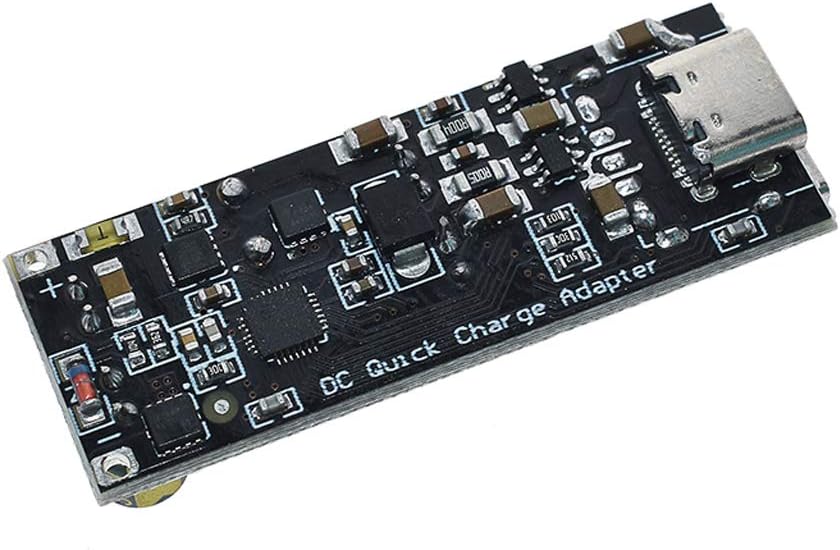

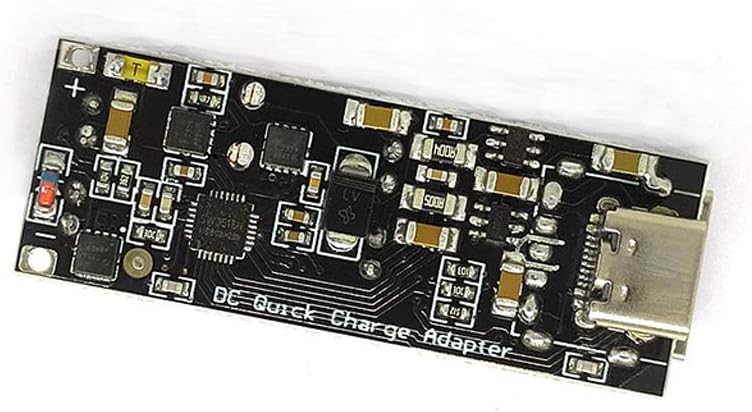

Control IC Protocol IC handles voltage negotiation (e.g., IP3518 or similar)
Converter Type Buck-Boost (Step-Down/Step-Up)
Efficiency Up to 95% (typical, depending on load and voltage)
Wire Included 24AWG high-quality silicone wire (suitable for higher current)
Protection Features Overcurrent, Overvoltage, Short-Circuit, Over-temperature protection

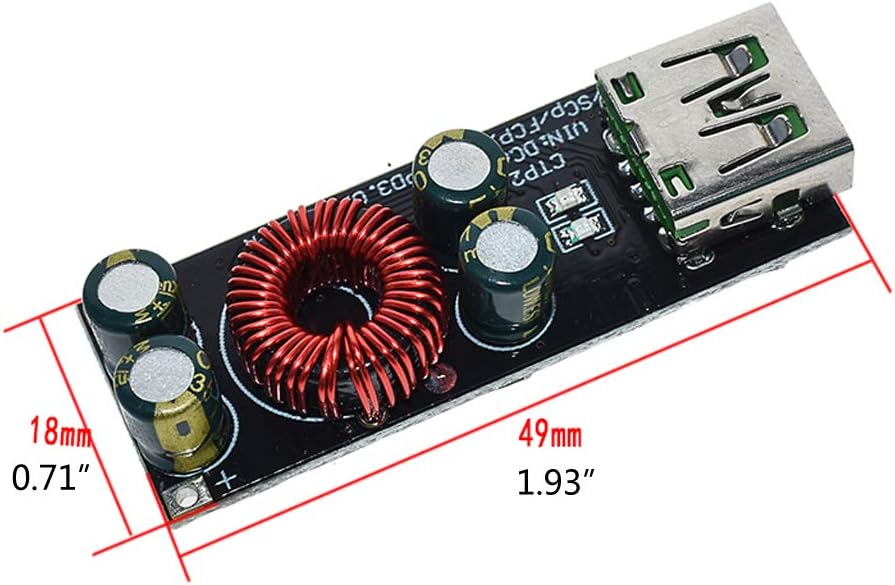

Dimensions Approx. 45mm × 20mm × 10mm
Cooling Method Passive (via PCB copper traces and layout)
Board Type Fully assembled module with pre-soldered connectors
Mounting Through-hole/PCB screw mountable (optional)
Usage Fast charging mobile phones, power banks, USB-powered gadgets, etc.

Feature:

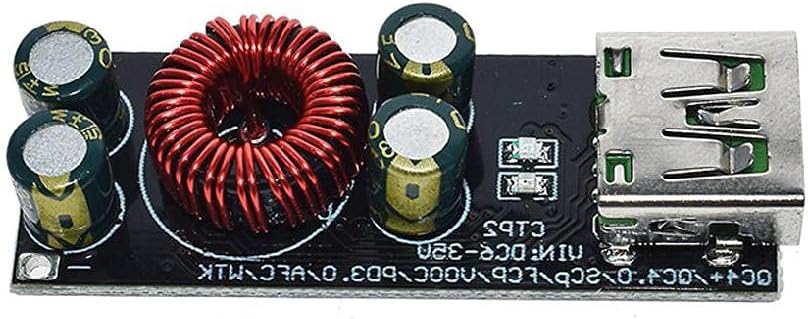

Adopt the external MOS tube, double wire and iron, silicone and aluminum magnetic ring, high efficiency, less heating under the same charging power.Low resistance double parallel electrolytic capacitor, plus 6 pcs 1206 ceramic capacitors! Increased performance.

2.Support for Qualcomm QC4+/QC4.0/QC3.0, for Huawei SCP/FCP, for OPPO VOOC, for Apple 2.4A, for Samsung AFC, for one plus DASH, for VIVO 9V2A dual engine flash charger, for MediaTek PE2.0.

Description:

  • Adopt the external MOS tube, double wire and iron, silicone and aluminum magnetic ring, high efficiency, less heating under the same charging power.Low resistance double parallel electrolytic capacitor, plus 6 pcs 1206 ceramic capacitors! I

    ncreased performance.

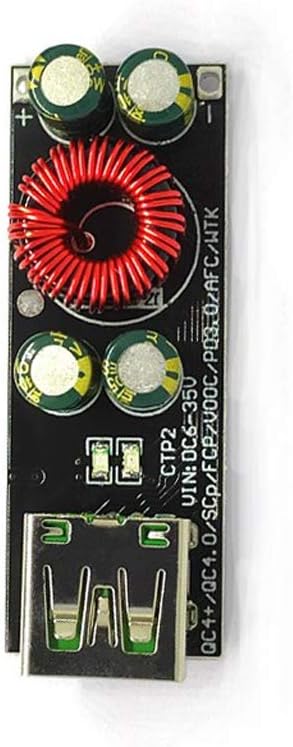

  • Quick charge status indicator: blue light is output indicator, red light is quick charge status indicator!
  • Support for Qualcomm QC4+/QC4.0/QC3.0, for Huawei SCP/FCP, for OPPO VOOC, for Apple 2.4A, for Samsung AFC, for one plus DASH, for VIVO 9V2A dual engine flash charger, for MediaTek PE2.0
  • Widely used for Mobile Phone, laptop, power bank, battery and etc.

Note:

For quick charging with low voltage and large current, please use the original data cable. If you want to measure the charging voltage and current, please use the USB meter with low internal resistance!Otherwise affect charging current!
2. TYPE C port is used for output charging;Use TYPE-C to TYPE-C cable to charge mobile phone or laptop!
3. QC4+/QC4.0/PD3.0 and other protocols use TYPE C port!
4. When the power supply voltage is higher than 21 volts, the maximum support of port C PD protocol is 20V3A output.

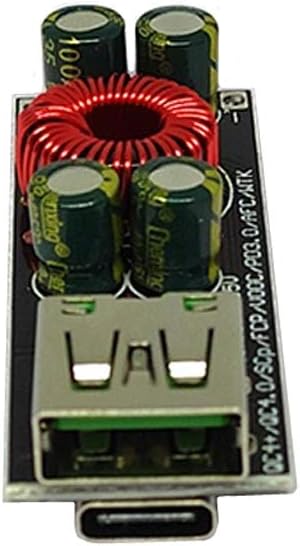

5. When USB port and TYPE_C port are plugged in at the same time, both ports are 5V output!
