2S 20A 18650 Lithium Battery Protection Board

2S 20A 18650 Lithium Battery Protection Board

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Description:

A battery management system (BMS) monitors the status of batteries, controls their charging and discharging processes, and performs other functions. The HX-2S-D20 charge-discharge controller module can connect two 18650 batteries at the same time. It has short circuit, overcharge, and over-discharge protection. It also cuts off the power supply to the batteries when at least one of them reaches full capacity. This BMS controller can operate for more than 30,000 hours and has a maximum current of 20 A.

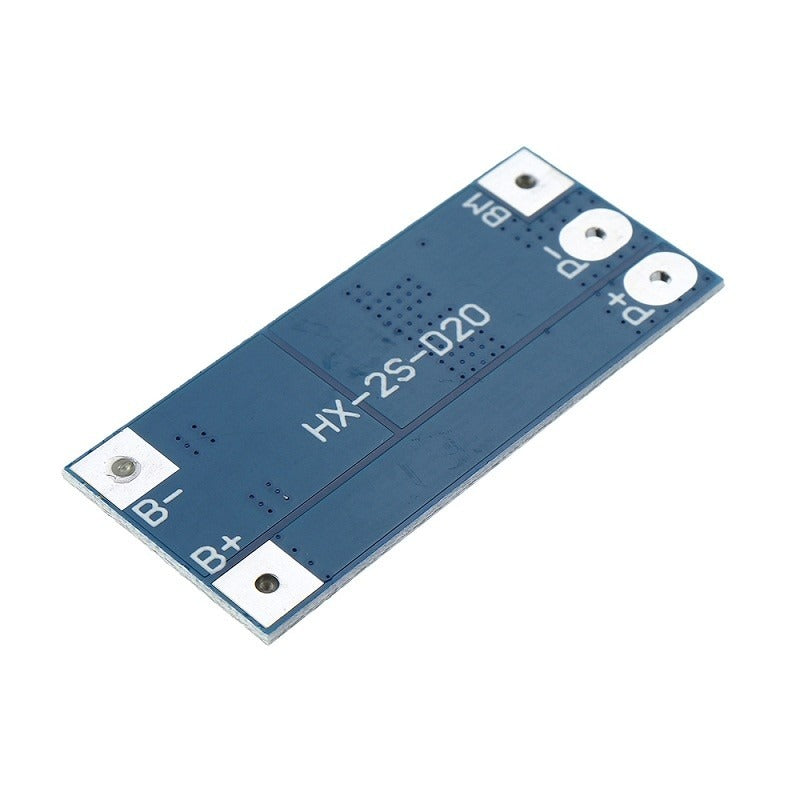

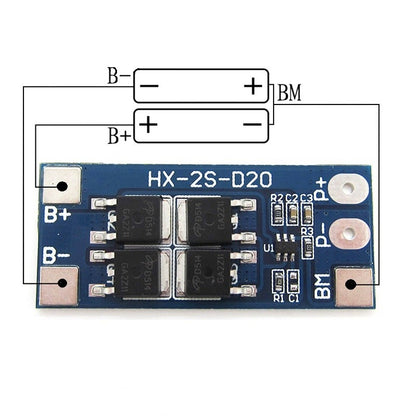

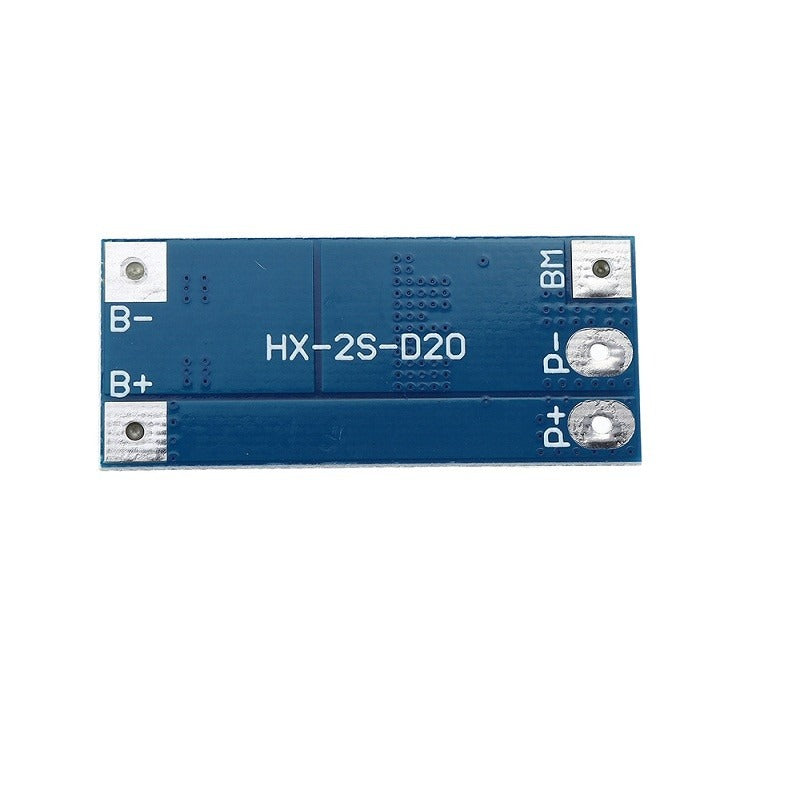

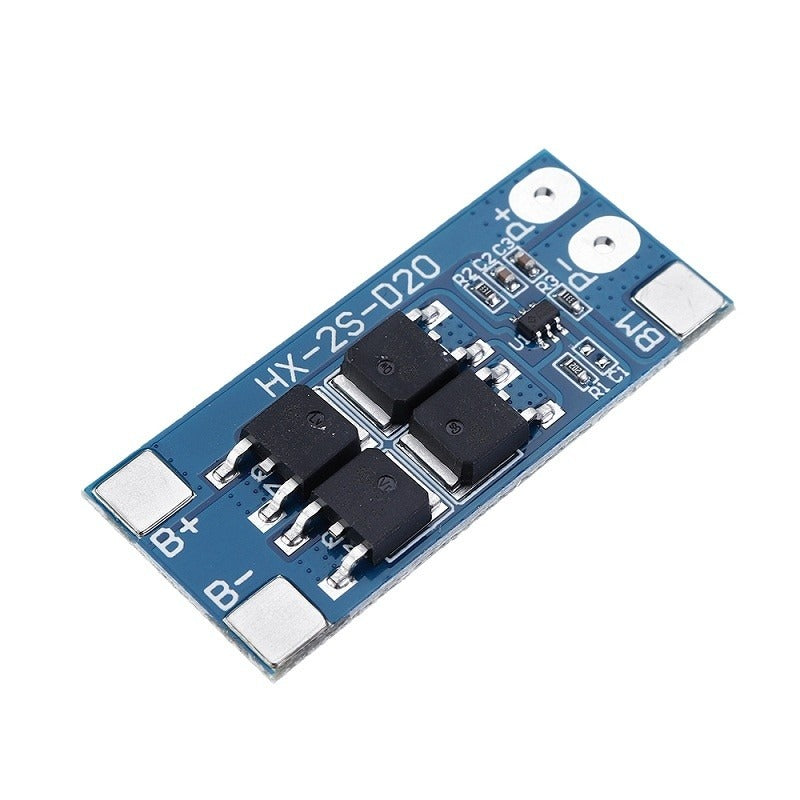

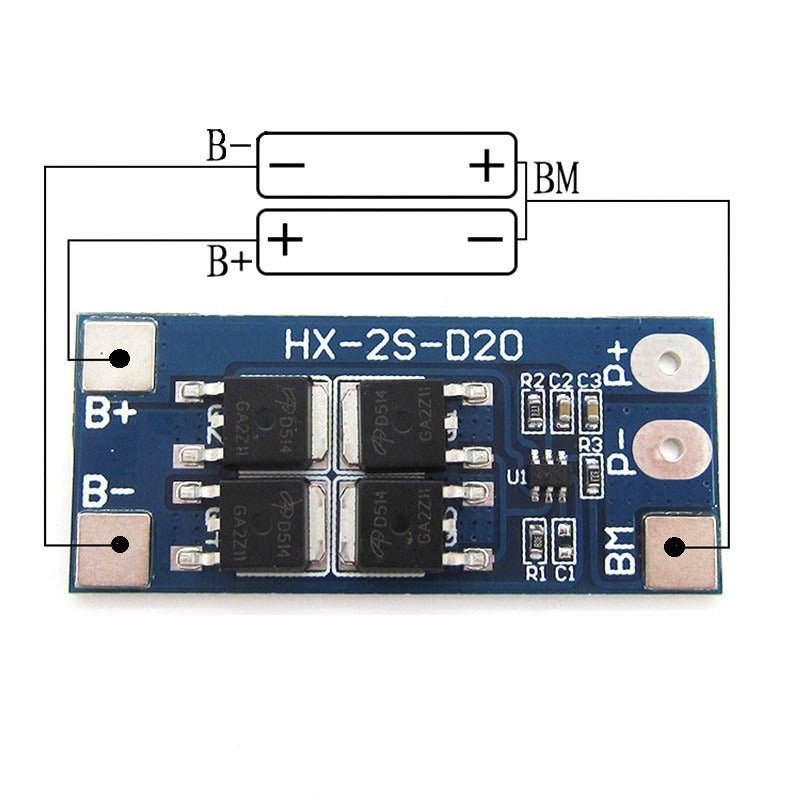

The HX-2S-D20 BMS module has 5 pins:B      : Battery positive pole
B-      : Battery negative pole
BM    : Mid-point of a battery assembly
P-      : Negative charge / discharge terminal
P      :Positive charge/discharge terminal

If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the “protection” mode. In order to restore the module, it is necessary to re-apply voltage to the input of the BMS board or wait a while until the charge controller automatically disables protection.

Power is supplied to the module from an external power source. The voltage range of the module is from 7.4 to 8.4 V. For charging, you can use a step-up voltage converter with a current limiter. Please note that this module is not a charger.

Feature:

  1. Small size designed for a four-cell battery pack.
  2. Simple and  convenient circuit for easy connections
  3. Over-charge/Over-discharge Protection.

Specifications:

Model HX-2S-D20
Over Charge Voltage Range 4.25-4.35 V + 0.05 V
Over Voltage Range 2.5-3.0 V + 0.05 V
Max. Operating Current 13 A
Max. Limiting Current 20 A
Charging Voltage 8.4-9 V
Quiescent Current Lower than 10 µA
Internal Resistance <300 Ohm
Operating Temperature -40°C to +50°C
Length (mm): 44.77
Width (mm) 18.85
Height (mm) 3.5
Weight (gm) 4
Shipping Weight 0.005 kg
Shipping Dimensions 4 × 4 × 1 cm
