20kg DS3218 Servo DC4.8-6.8V High Torque 270 Degree Waterproof Full Metal Gear

20kg DS3218 Servo DC4.8-6.8V High Torque 270 Degree Waterproof Full Metal Gear

₹ 1,110.00
₹ 1,209.00 ₹ 1,110.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

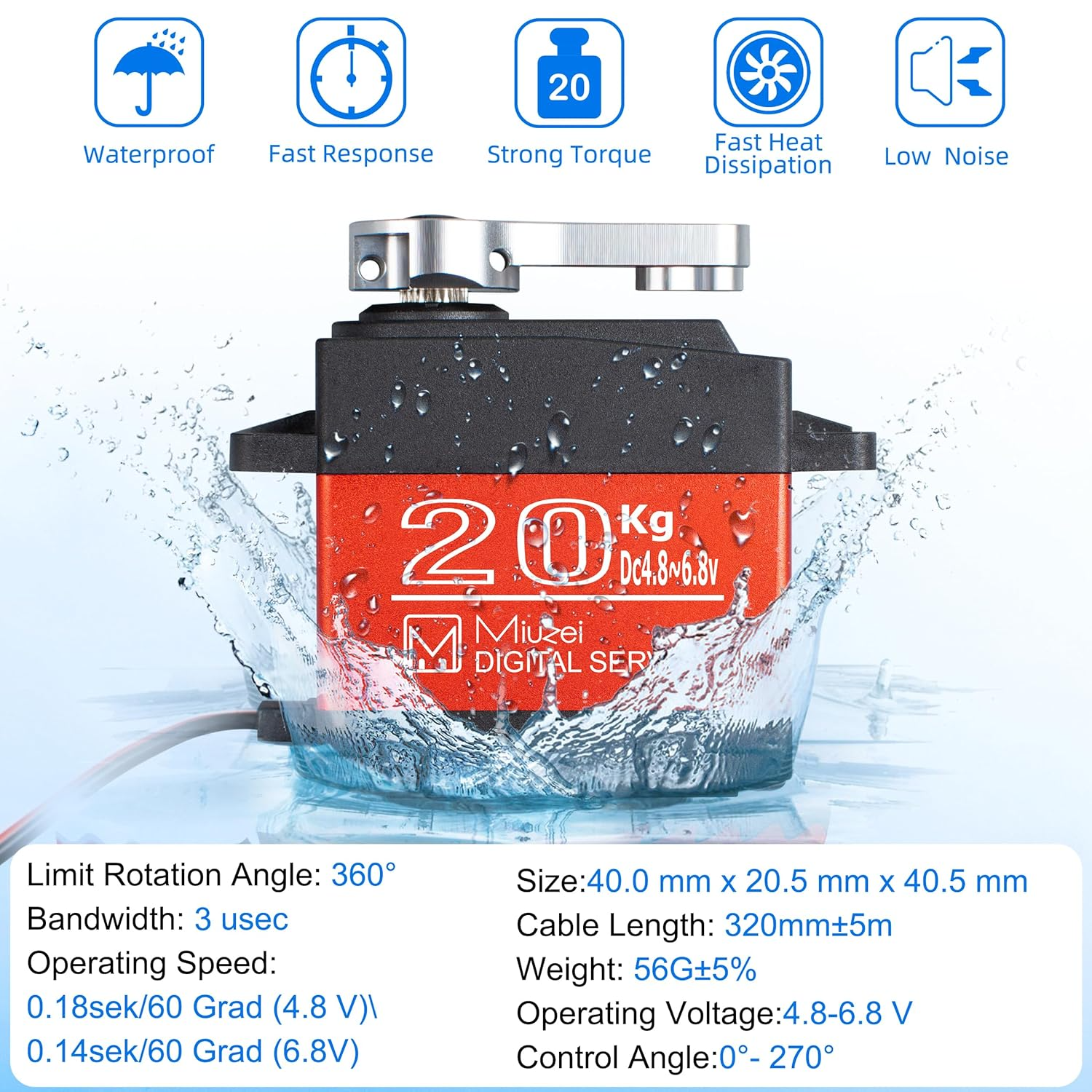

Specification:

Parameter Details
Model DS3218
Type Digital high-torque servo
Torque 19.5kg·cm @ 6.8V17.5kg·cm @ 6.0V15kg·cm @ 4.8V
Operating Voltage 4.8V – 6.8V DC
Rotation Angle 270° (±10°, programmable if supported)
Speed 0.16 sec/60° @ 6.8V0.18 sec/60° @ 6.0V
Control Signal PWM (standard 50Hz–333Hz)
Pulse Width Range 500 – 2500 µs

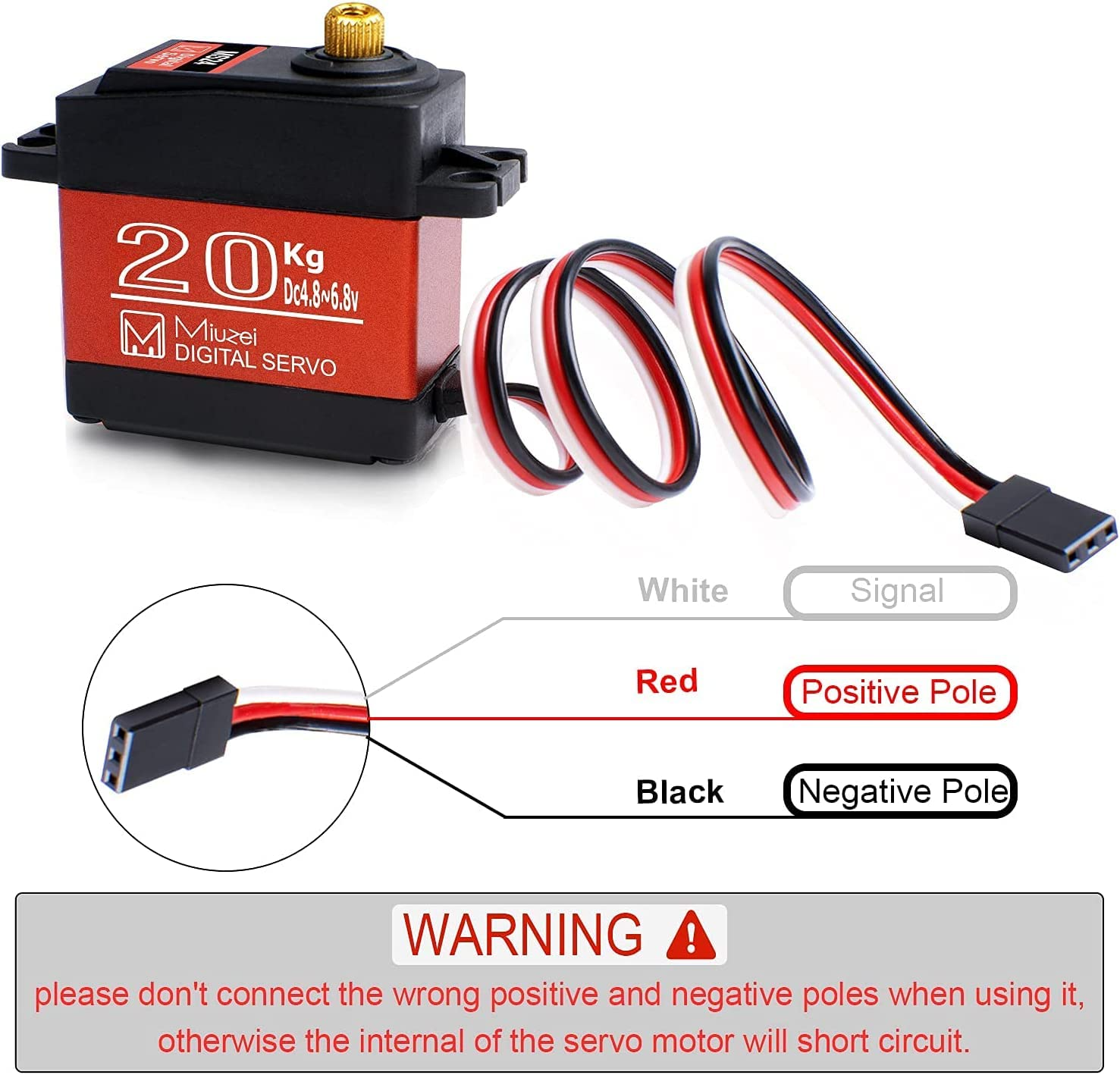

Connector Type 3-pin (GND, VCC, PWM signal)
Gears Full metal gear set
Bearings Dual ball bearings
Waterproof Rating IP66 (dust-tight, protected from high-pressure water jets)
Motor Type Core motor
Weight ~60g

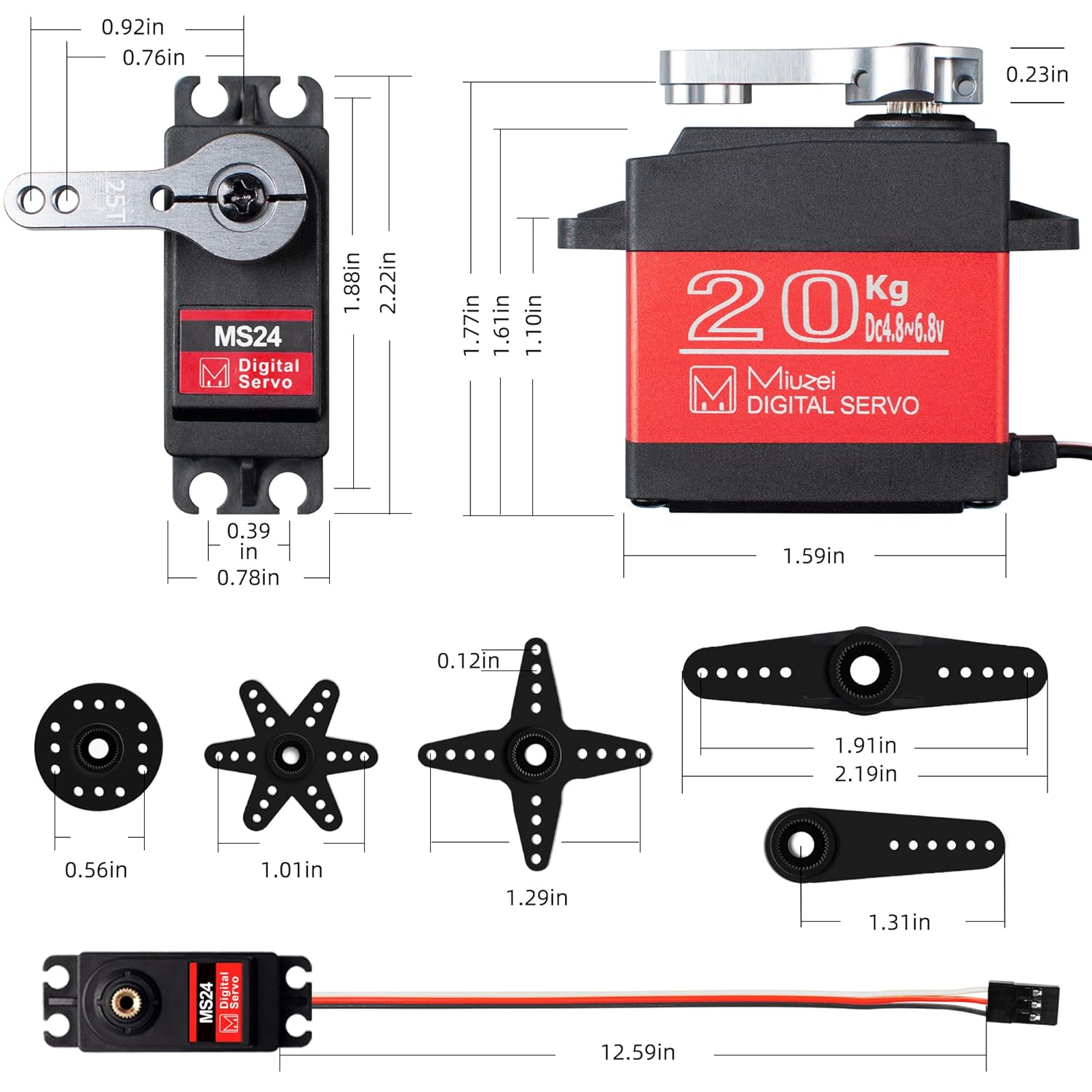

Dimensions ~40.5 × 20.2 × 38mm (L×W×H)
Cable Length ~30cm (with JR/Futaba-compatible connector)
Mounting Hole Spacing Standard 20mm spacing
Compatibility RC receivers, robot controllers, servo testers
Applications RC cars/boats, robotics, smart arms, mechanical systems



Features:

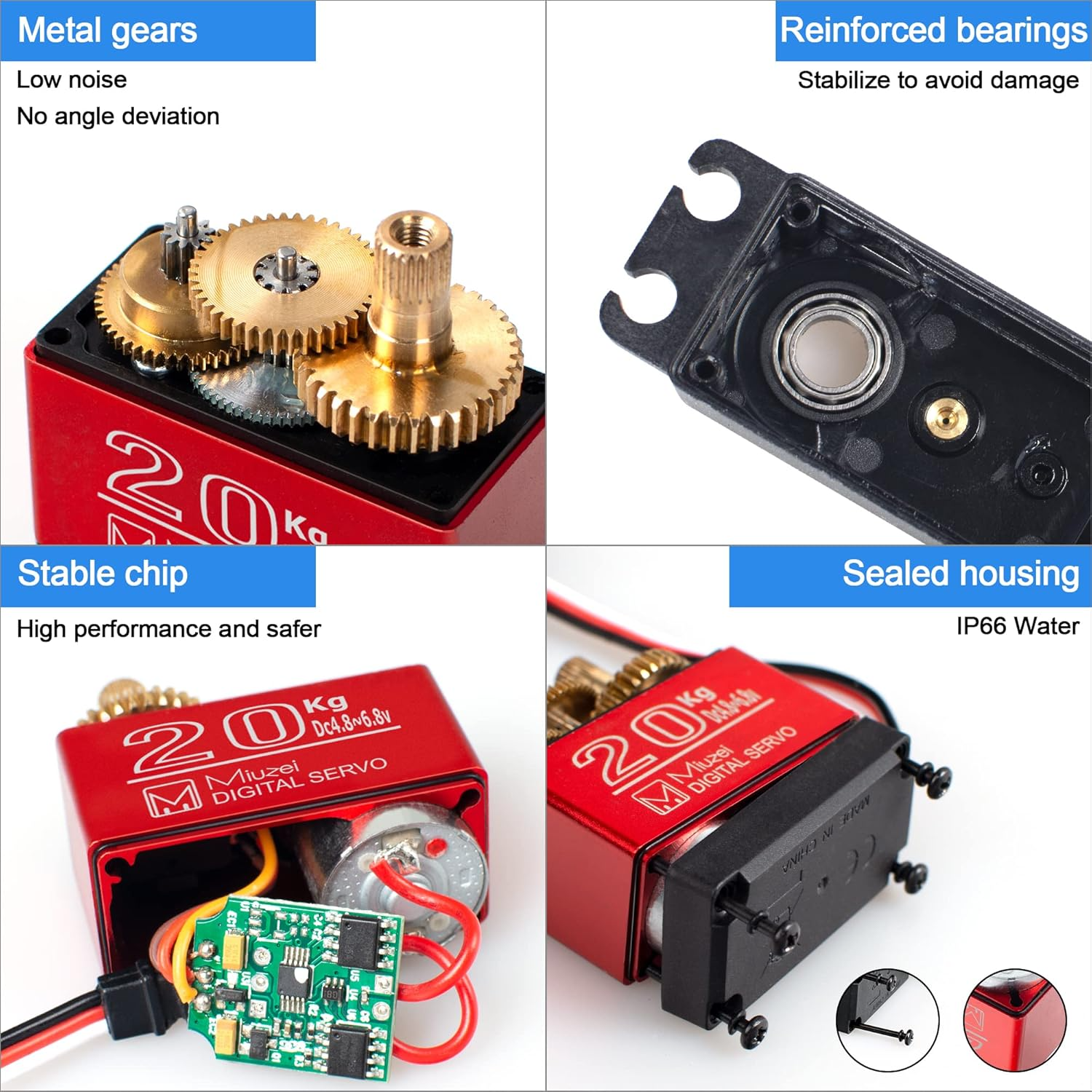

  • High torque (up to 20kg·cm) for heavy-duty mechanical movement.

  • Wide voltage compatibility (4.8V–6.8V) for versatile power supply options.

  • 270° rotation – wider than standard servos.

  • Full metal gears for high durability and wear resistance.

  • Dual ball bearings ensure smooth and quiet operation.

  • Waterproof IP66 rated – suitable for outdoor and marine use.

  • Digital control with precise and responsive motion.

Description:

The DS3218 20kg High Torque Servo Motor is a digital, high-performance, waterproof servo built for demanding robotic and RC applications. It delivers up to 20kg·cm torque, making it suitable for robot joints, RC cars, boats, crawlers, aircraft, and mechanical arms.

It features full metal gears for durability and precise control, and an impressive 270° rotation range, which offers greater flexibility than standard 180° servos. The DS3218 is also equipped with ball bearings for smooth operation and a high-precision potentiometer for consistent position feedback.

With its IP66 waterproof rating, it’s ideal for outdoor and wet-environment applications, such as RC boats or weather-exposed robotic platforms.
