20KG Digital Servo Motor High Torque Servo Metal Waterproof Servo for R/C Car Robot, DS3218 Control Angle 270Ã

20KG Digital Servo Motor High Torque Servo Metal Waterproof Servo for R/C Car Robot, DS3218 Control Angle 270Ã

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Specification
Model DS3218
Type Digital High-Torque Servo
Control Angle 270° (wider than standard 180°, allows greater movement range)
Operating Voltage 4.8V – 6.8V DC
Stall Torque: - 19 kg·cm at 5.0V - 21.5 kg·cm at 6.8V
Speed: - 0.16 sec/60° at 5.0V - 0.14 sec/60° at 6.8V
Dead Band Width 3 μs
PWM Signal Range 500–2500 μs (typically centered at 1500 μs)
Operating Frequency 50Hz – 330Hz
Motor Type Coreless DC Motor

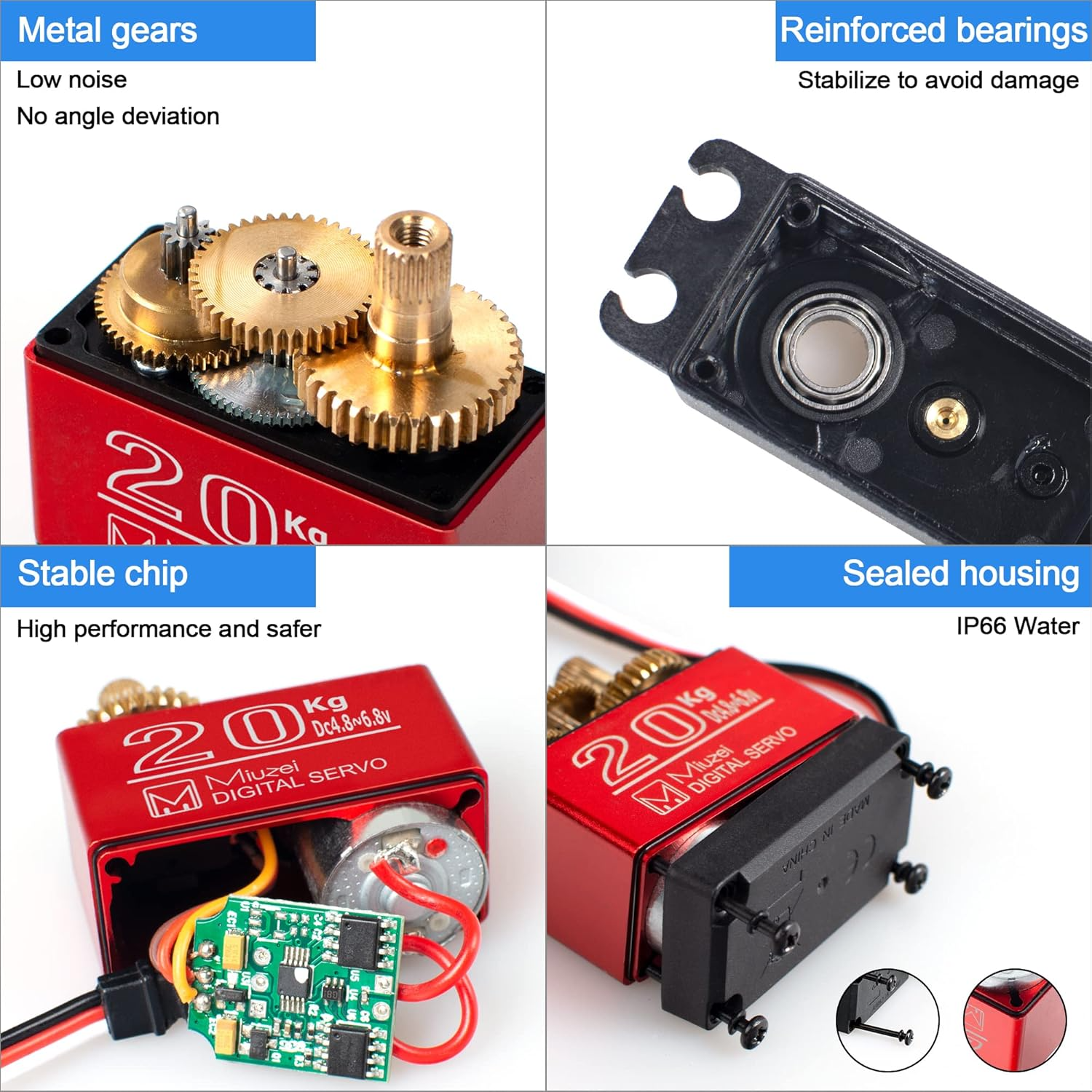

Gear Type Full Metal Gears (steel/brass/copper alloy mix)
Case Material CNC Aluminum Middle Shell + Plastic End Caps
Waterproof Rating IP66 (dust-tight, water-resistant against powerful jets)
Connector Type 3-pin (PWM signal, VCC, GND) — DuPont/JR style
Bearing Dual ball bearings
Rotation Direction Clockwise (standard)

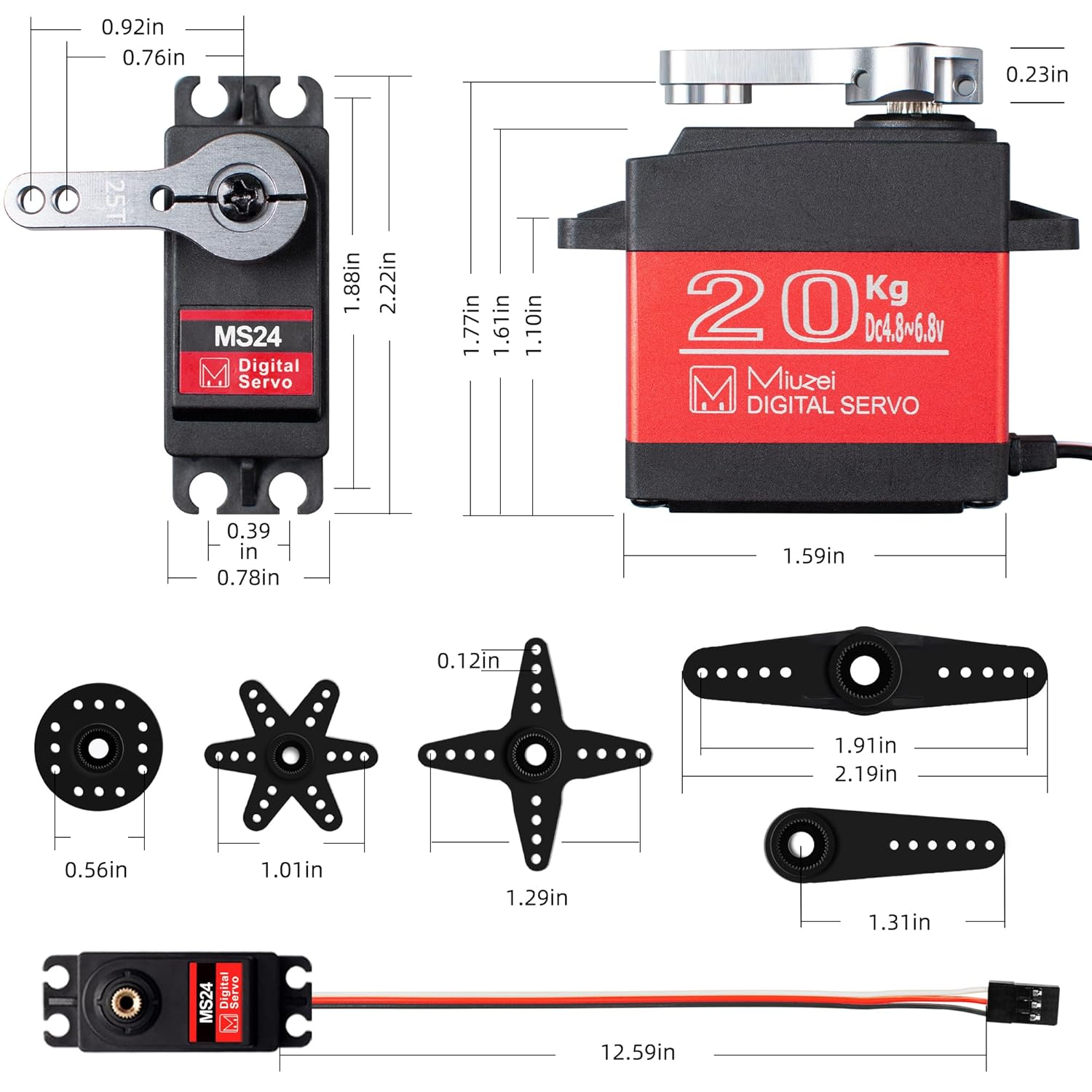

Dimensions 40 × 20 × 40.5 mm (L × W × H)
Weight ~60 g
Compatible Control Boards Arduino, Raspberry Pi, STM32, R/C receivers, etc.

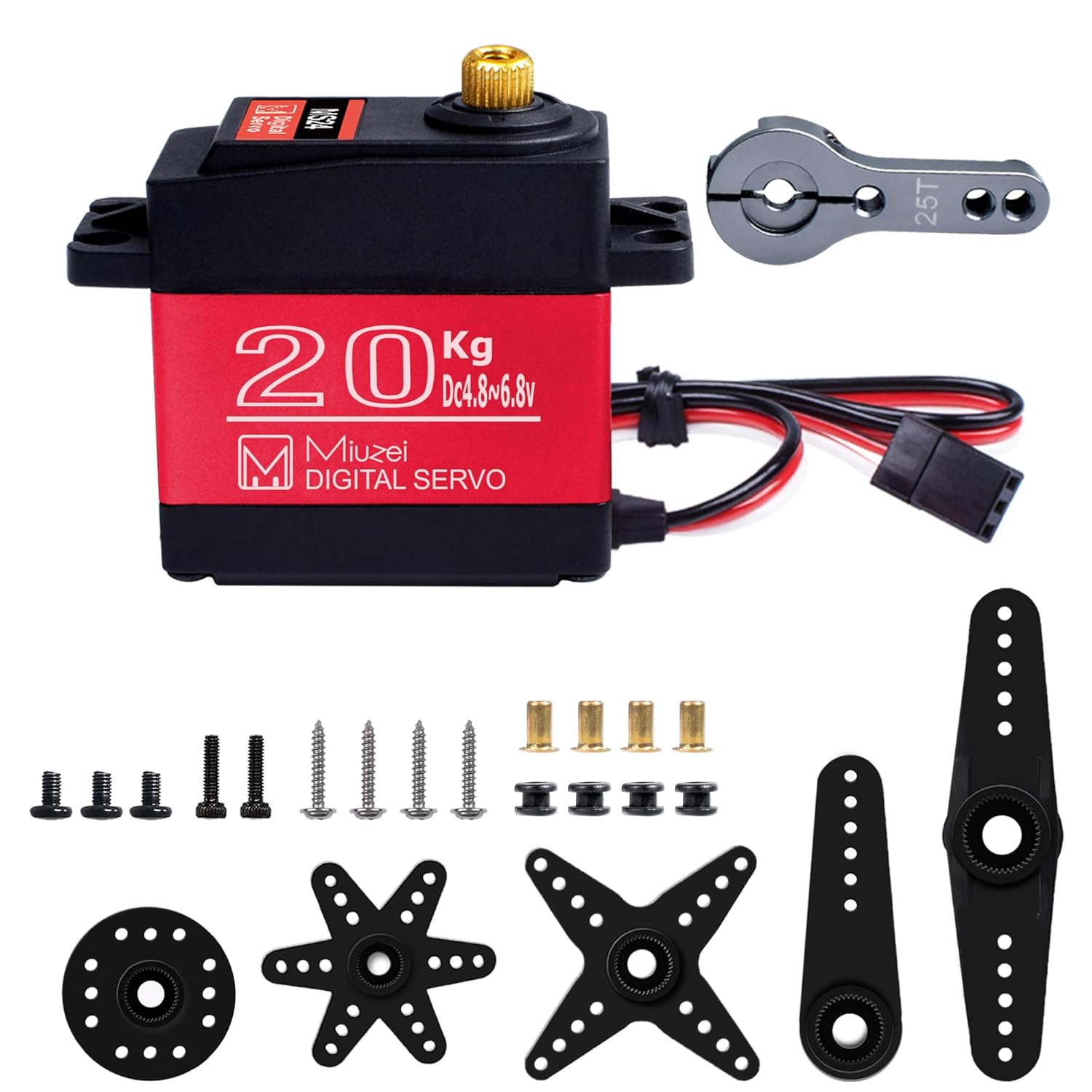

Horn Type 25T spline (compatible with standard servo arms)



Features:

  • Model: DS3218

  • Torque:

    • At 5V: 19 kg·cm (263.8 oz·in)

    • At 6.8V: 21.5 kg·cm (298.5 oz·in)

  • Speed:

    • At 5V: 0.16 sec/60°

    • At 6.8V: 0.14 sec/60°

  • Control Angle: 270° (with appropriate PWM signal)

  • Operating Voltage: 4.8V to 6.8V DC

  • Gear Type: High-precision metal gears (copper & aluminum)

  • Shell: CNC aluminum middle shell

  • Waterproof Rating: IP66 (splash and dust resistant)

  • Dead Band: 3μs

  • Weight: Approximately 60g

  • Dimensions: 40 x 20 x 40.5 mm

  • Motor Type: DC Motor

  • Working Frequency: 50-333Hz

  • High Torque Output: Capable of delivering up to 21.5 kg·cm torque at 6.8V, suitable for steering mechanisms in R/C cars and robotic arms.

  • Durable Construction: Metal gears and CNC aluminum shell enhance durability, reducing wear and tear over time.

  • Waterproof Design: IP66 rating ensures reliable operation in wet conditions, ideal for outdoor R/C vehicles and marine applications.

  • Wide Control Angle: 270° rotation provides more precise control compared to standard 180° servos.

  • Versatile Compatibility: Works seamlessly with microcontrollers like Arduino, Raspberry Pi, and other R/C systems.

Description:

The DS3218 is a high-performance digital servo motor designed for demanding applications requiring substantial torque and durability. It features a metal gear system, ensuring robustness and longevity, and is waterproof, making it suitable for outdoor and marine environments. With a 270° control angle, it offers greater flexibility compared to standard 180° servos, allowing for more precise control in various projects.
