20A 300W CC CV Step Down Module Adjustable DC 6-40V to 1.2-36V Voltage Regulator Buck Converter Constant Current Power Supply Module

20A 300W CC CV Step Down Module Adjustable DC 6-40V to 1.2-36V Voltage Regulator Buck Converter Constant Current Power Supply Module

₹ 5.00
₹ 5.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Colour: Multicolor

weight: Lightweight

Material: Plastic

Net Quantity (N): 1

Recommended Age: 12 years & more

Shape: Rectangular

Type: Electronic Early Development Toys

Features:

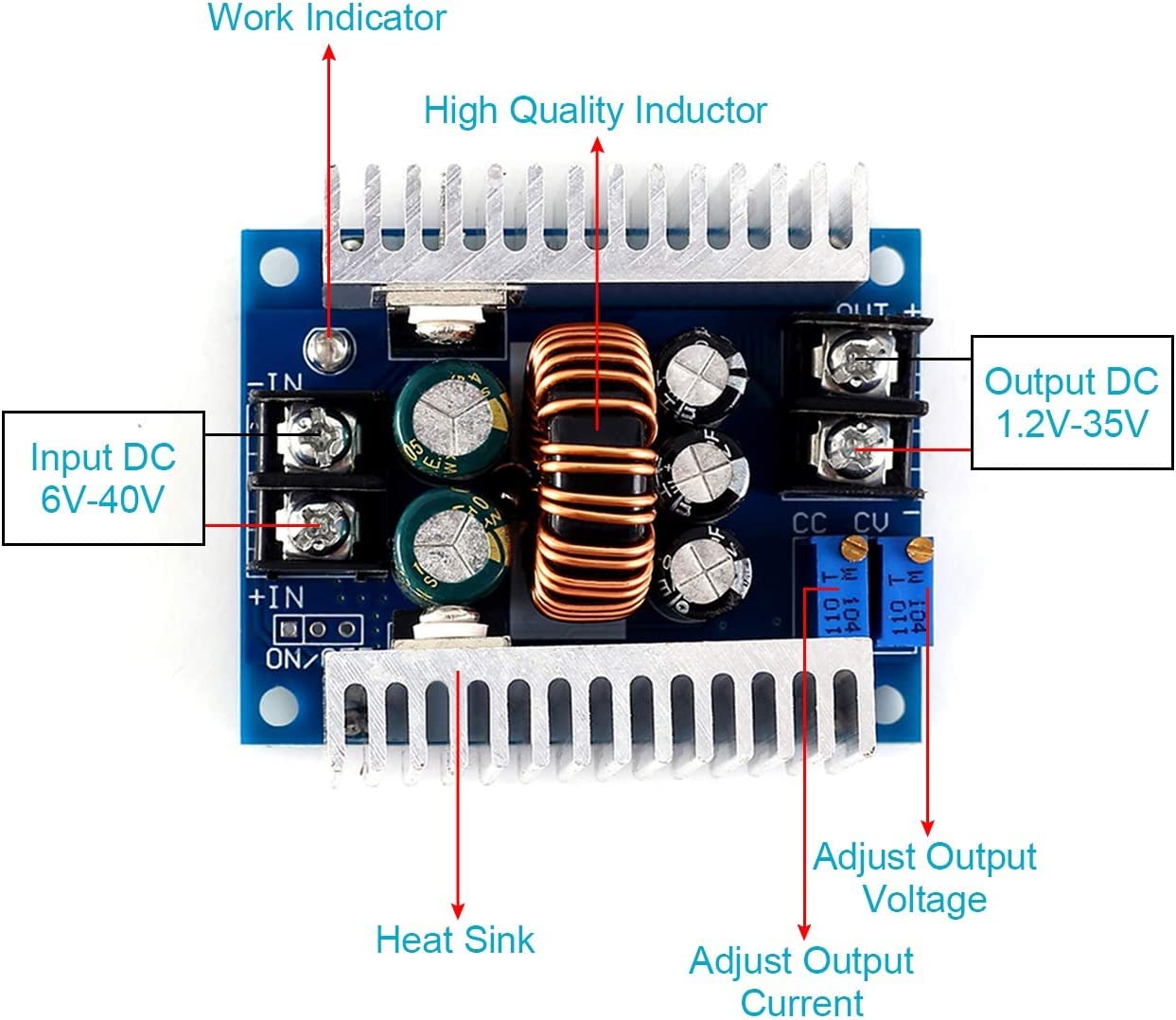

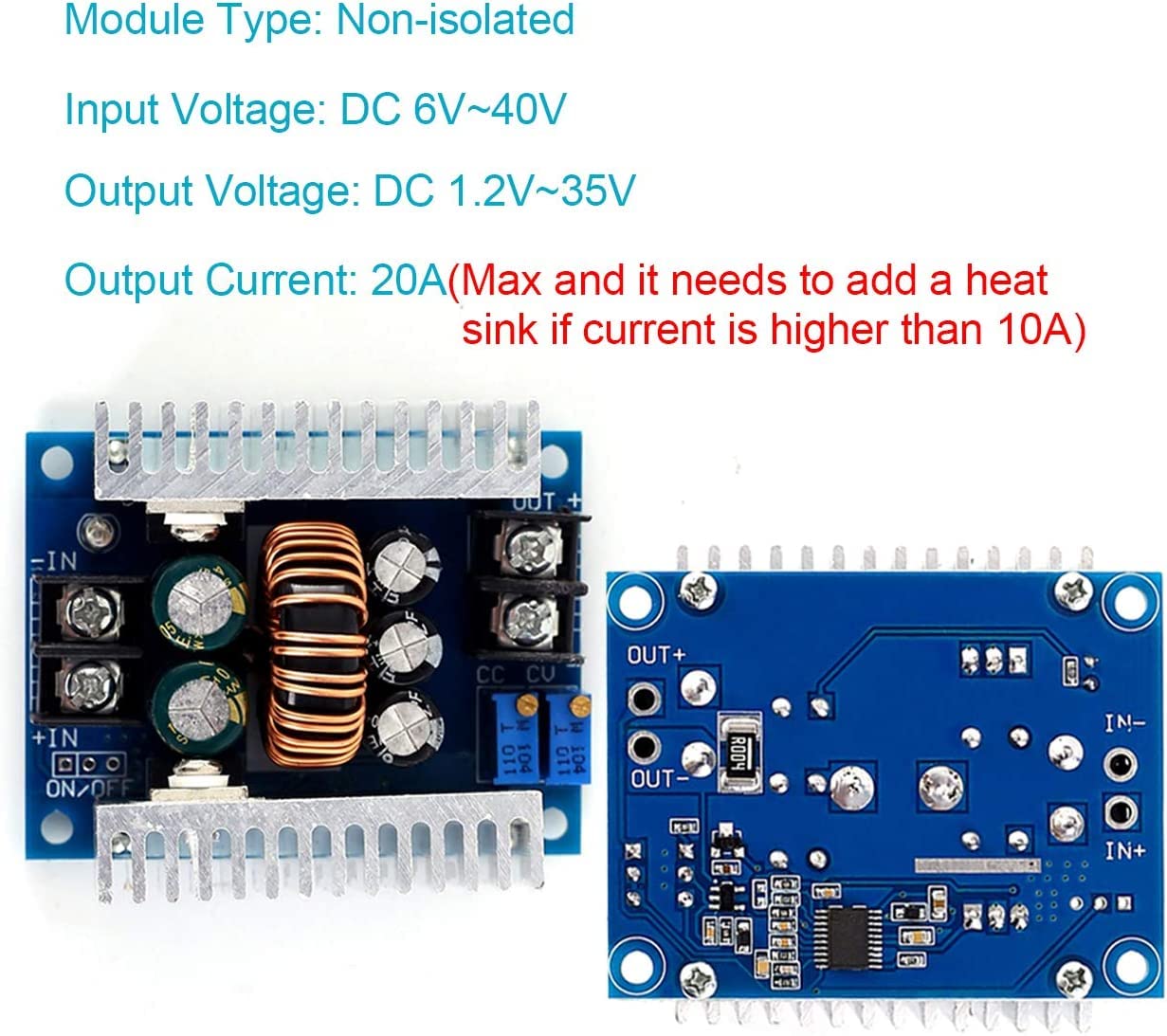

  • 20A CVCC Step-down Power Module w/Overcurrent Protection: This power module can be used as a practical DC adjustable CVCC constant voltage constant current buck power supply module. Working Voltage: DC 6V-40V, Output Voltage: DC 1.2V-35V, Output Current: 20A(Max and it needs to add a heat sink if current is more than 10A). Module Type: Non-isolated.
  • Used as A Charger: This boost power module can also be used as a simple charger. You can use it to charge rechargeable battery. In this situation, the output voltage should be the same with the battery’s work voltage. Check and follow the product images for specific using steps.
  • Strong Self-protection Ability: This buck power module has powerful protection functions, including Over Current Protection and Short Circuit Protection. And anti-backflow protection makes it possible to connect to the battery to charge directly.

Description:

This Step-Down Voltage Module With a Wide Input Voltage Range from 6V to 40V, The Step-Down Converter Can Adjust Output Voltage and Current Accurately Large Current Designed Step Down Module is Designed with 75V/80A Large Current Dual MOS Tube. Input and Output Use High Frequency Low Resistance Electrolytic Capacitor Low Ripple, Stable Output Wide Application: Step-Down Converter Widely Used for DIY Stabilized Voltage Supply, LED Car Display, Mobile Power, Industrial Equipment Appliances, LED Driver, Monitor, Solar Energy, Fans, Photovoltaic Energy, Motor, etc. Power Source DC Current Rating 20 Amps Minimum Frequency 50 Hz Product description Specification: Output Ripple: ≤50mV Wiring Method: Terminal Input Voltage: 6V to 40V DC(10V to 40V is Suggested) Output Voltage: 1.2V to 36V DC Output Current: 20A(Max.), 15A(Suggested) Efficiency: 95%(24V to 12V, 20A) Short Circuit Protection: Self-Recovery(Cannot Short Circuit for Long Time) Features: High Conversion Efficiency Can Up to 96% Dual MOS Tube Designed Large Current: 75V/80A

Country of Origin: China
