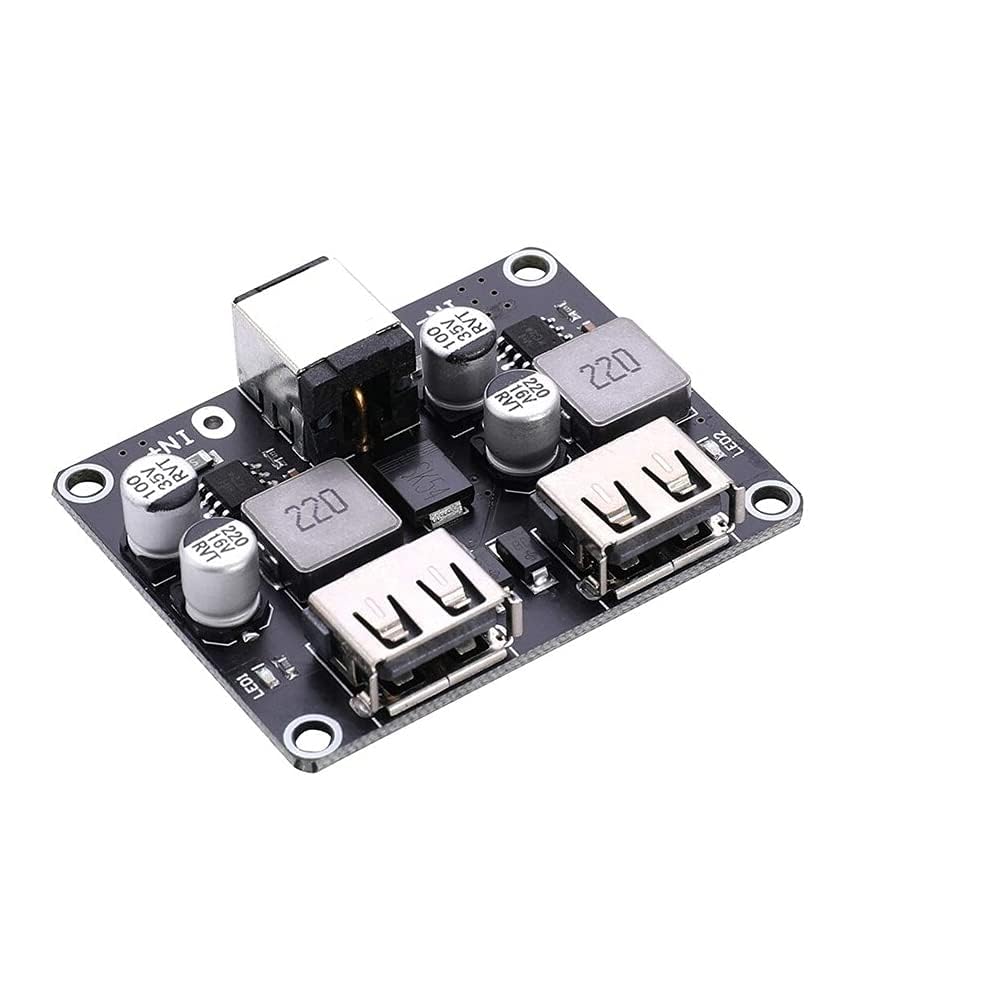

2 WAY 12V 24V to QC3.0 Fast Charge Dual USB Charging Board Step-Down Module

2 WAY 12V 24V to QC3.0 Fast Charge Dual USB Charging Board Step-Down Module

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp
Parameter Specification
Input Voltage 12V to 24V DC
Output Voltage QC3.0 Fast Charge Supported (5V / 9V / 12V)
Output Current Up to 3A per USB port (max combined current depends on module)
Number of USB Ports 2 USB output ports
Charging Protocols Supported Qualcomm Quick Charge 3.0 (QC3.0), QC2.0 backward compatible
Conversion Type Step-down (buck) DC-DC converter
Efficiency Typically 85% - 95%
Protection Features Over-voltage, over-current, short-circuit, thermal protection
Operating Temperature -20°C to +70°C

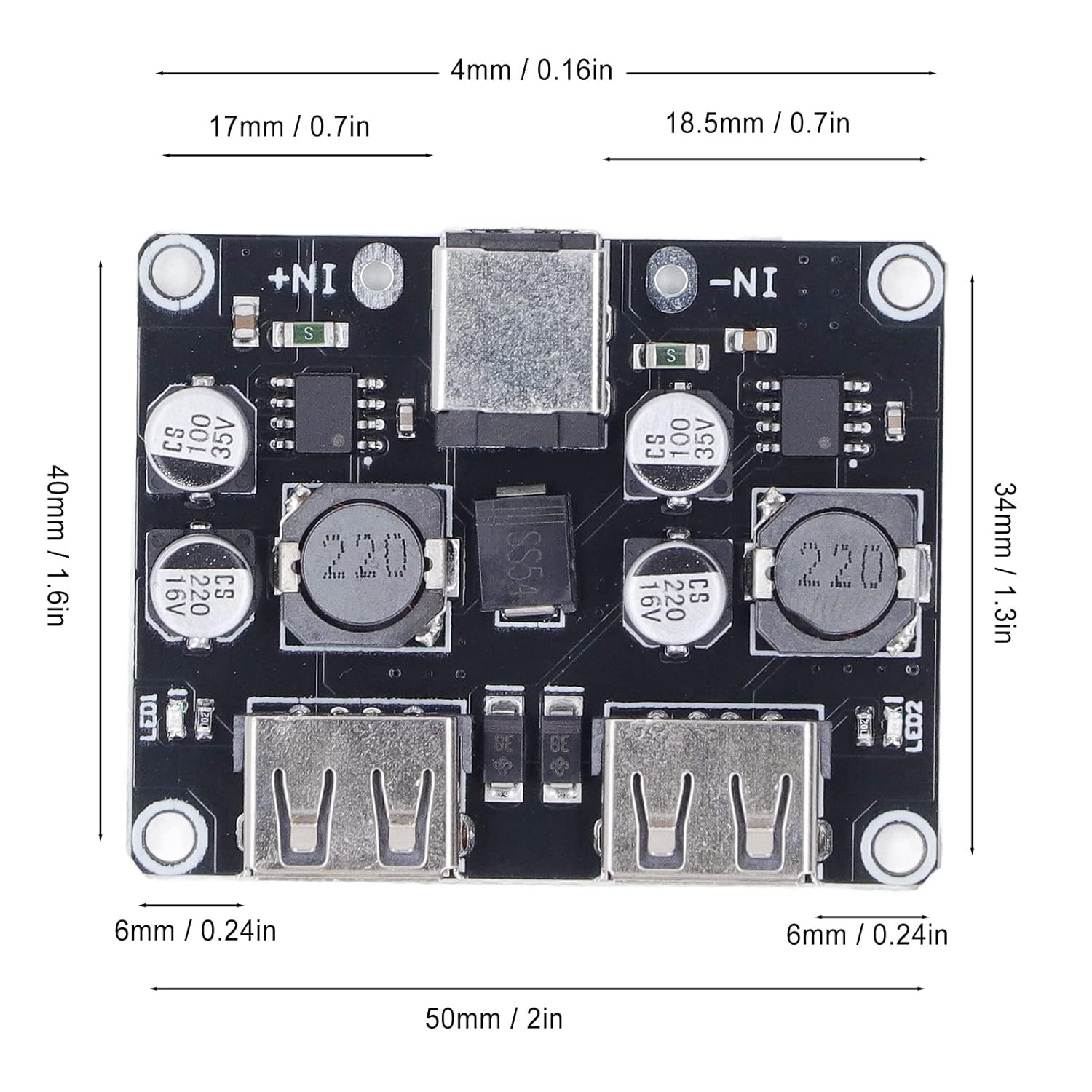

Dimensions Typically around 60mm x 30mm (varies by manufacturer)
Status Indicators LED indicators for power and charging status
Application Car chargers, solar battery chargers, power banks, DIY charging projects



Freatures:

  • Input Voltage: Supports wide input range of 12V to 24V DC, suitable for automotive, solar, or battery-powered applications

  • Output: Dual USB ports with Quick Charge 3.0 (QC3.0) technology for fast charging compatible devices

  • Fast Charging: QC3.0 supports dynamic voltage adjustment (3.6V to 20V) to optimize charging speed and efficiency

  • Step-Down (Buck) Converter: Efficiently converts higher input voltage to stable 5V/9V/12V USB output with minimal power loss

  • Dual USB Output: Charge two devices simultaneously with independent voltage and current control

  • Maximum Output Current: Up to 3A per port (depending on input voltage and load)

  • Overcurrent Protection: Prevents damage from excessive current draw

  • Overvoltage Protection: Safeguards connected devices from voltage spikes

  • Short Circuit Protection: Automatically shuts down in case of short circuits to avoid damage

  • Thermal Protection: Prevents overheating during high load or extended use

  • Compact Size: Small PCB footprint for easy integration into DIY or embedded projects

  • LED Indicators: Power and charging status indicators for user convenience

  • Compatibility: Works with smartphones, tablets, power banks, and other QC3.0-enabled devices

  • Easy Installation: Standard input/output terminals and USB connectors for quick setup

Description:

This versatile step-down module is designed to efficiently convert a 12V or 24V DC input into stable 5V USB outputs with Qualcomm Quick Charge 3.0 (QC3.0) fast charging capability. It features dual USB ports, allowing simultaneous charging of two devices at high speeds, making it ideal for automotive, solar, and other DC-powered applications.

Equipped with intelligent QC3.0 technology, the module dynamically adjusts voltage and current output to match the connected device’s charging requirements, delivering up to 18W per port for rapid charging. The module incorporates a high-efficiency buck converter to minimize power loss and heat generation.

Built with robust protection mechanisms such as over-current, over-voltage, short-circuit, and thermal protection, this board ensures safe and reliable operation. Its compact design and easy screw terminal inputs simplify installation in custom projects or integration into power systems.

Ideal for powering smartphones, tablets, and QC3.0-compatible devices from 12V or 24V sources, this dual USB charging board combines convenience, speed, and safety for efficient mobile device charging.
