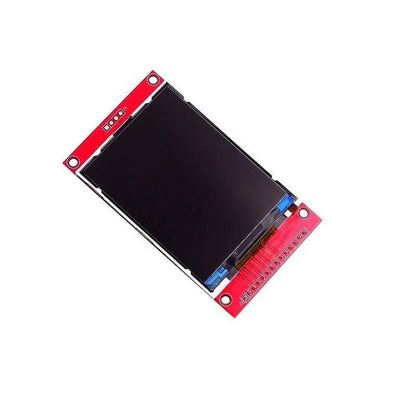

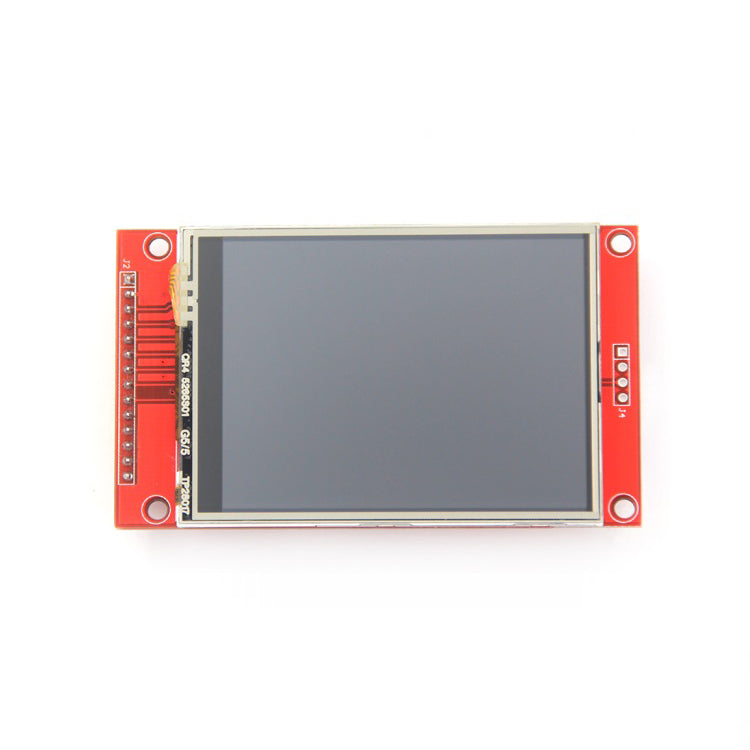

2.8 inch TFT Screen Module with SPI Interface 240x320 without Touch

2.8 inch TFT Screen Module with SPI Interface 240x320 without Touch

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp
Parameter Specification
Display Type TFT LCD (Thin-Film Transistor Liquid Crystal Display)
Screen Size 2.8 inches (diagonal)
Resolution 240 x 320 pixels (QVGA)
Color Depth 65K / 262K colors
Interface Type SPI (Serial Peripheral Interface)
Driver IC ILI9341 (commonly used)
Touch Panel Not included (no touch functionality)
Operating Voltage 3.3V logic (often with onboard 5V–3.3V level shifter)
Display Area ~43.2mm x 57.6mm
Viewing Direction 12 o'clock direction (can vary with driver IC)
Backlight White LED backlight
Backlight Supply Voltage Typically 3.3V–5V
Interface Pins 8–10 pins (VCC, GND, CS, RESET, DC/RS, MOSI, SCK, LED, optional MISO)
Refresh Rate Up to 60Hz (depends on SPI clock speed and MCU performance)
Operating Temperature -20°C to +70°C
Module Dimensions ~50mm x 70mm x 5mm (varies by board layout)
Mounting Holes Yes (typically 4, one at each corner)
Compatible Controllers Arduino, ESP32, STM32, Raspberry Pi (with SPI support)
Typical Libraries Adafruit_ILI9341, TFT_eSPI, UTFT, etc.



Features:

  • 2.8-inch TFT LCD (non-touch)

  • 240x320 pixel resolution (QVGA)

  • SPI interface for high-speed communication

  • ILI9341 driver IC (widely supported)

  • 262K color depth for vivid display

  • White LED backlight

  • Compatible with 3.3V logic (may require level shifter for 5V boards)

  • Ideal for Arduino, ESP32, STM32, Raspberry Pi, and more

Description:

This 2.8-inch TFT LCD display module is a compact and vibrant screen solution designed for microcontroller-based projects. Featuring a high-resolution 240x320 QVGA display and a fast SPI interface, it offers sharp visuals and efficient communication with minimal pin usage. The module uses the widely supported ILI9341 display driver, making it easy to integrate with popular platforms like Arduino, ESP32, STM32, and Raspberry Pi.

The display does not include a touch panel, making it ideal for applications where simple visual output is needed without user interaction. It is equipped with a bright white LED backlight for clear visibility in various lighting conditions.

Whether you're building a DIY electronics project, an embedded interface, or a compact information panel, this screen offers a reliable and easy-to-use display solution.
