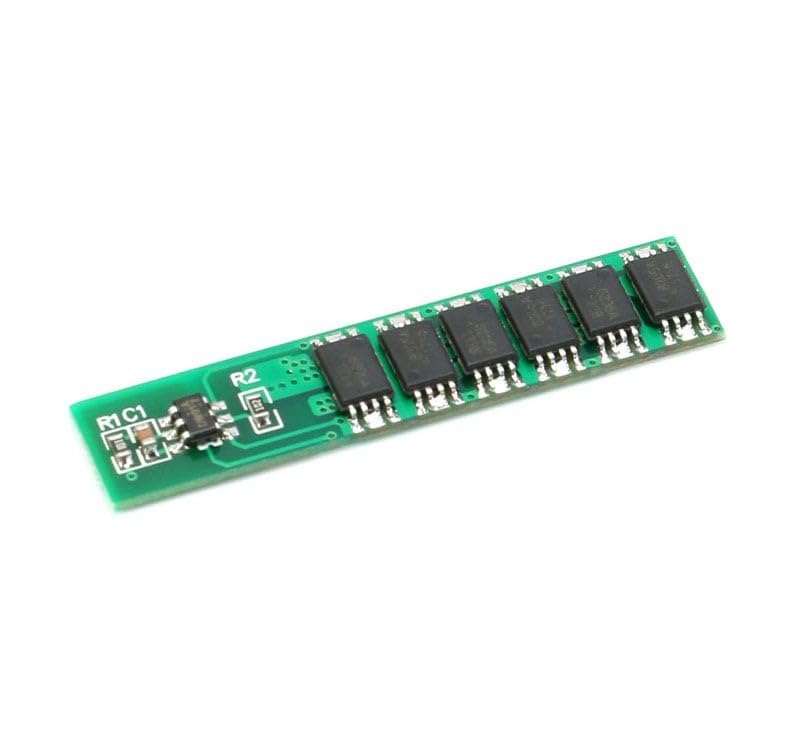

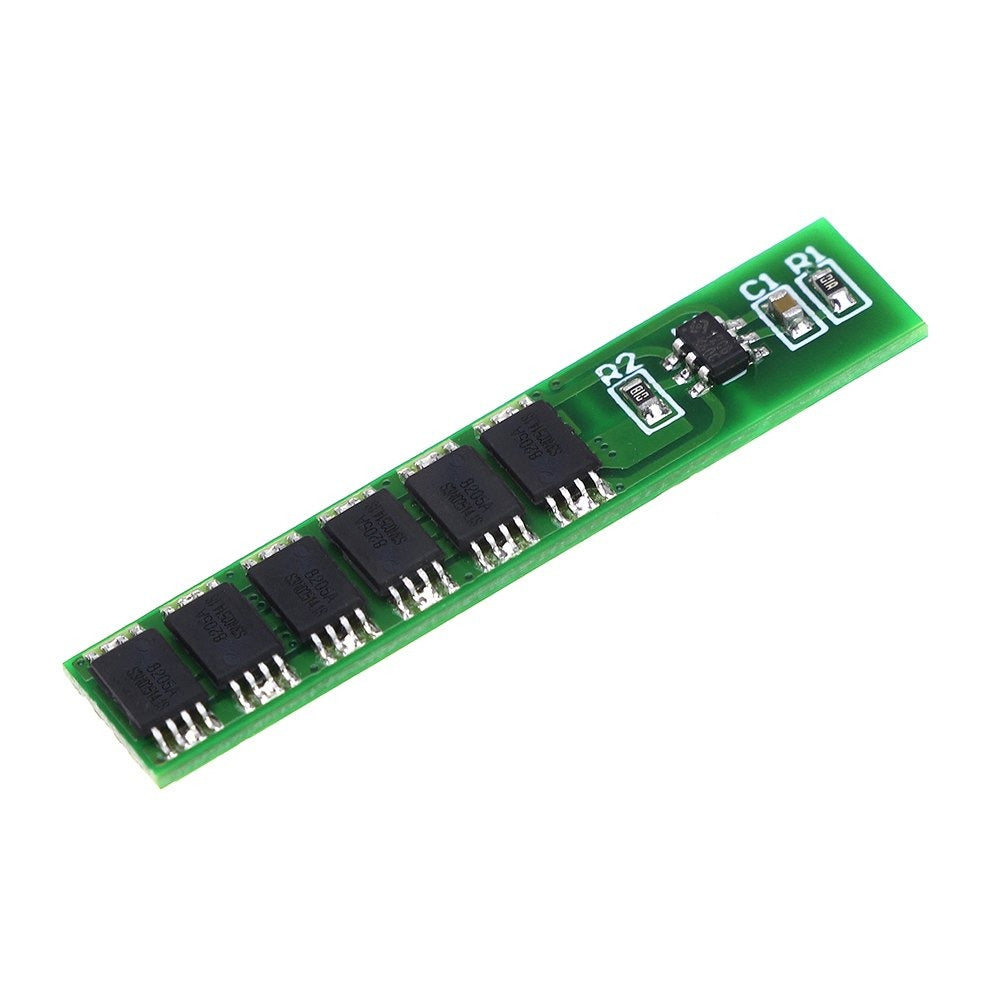

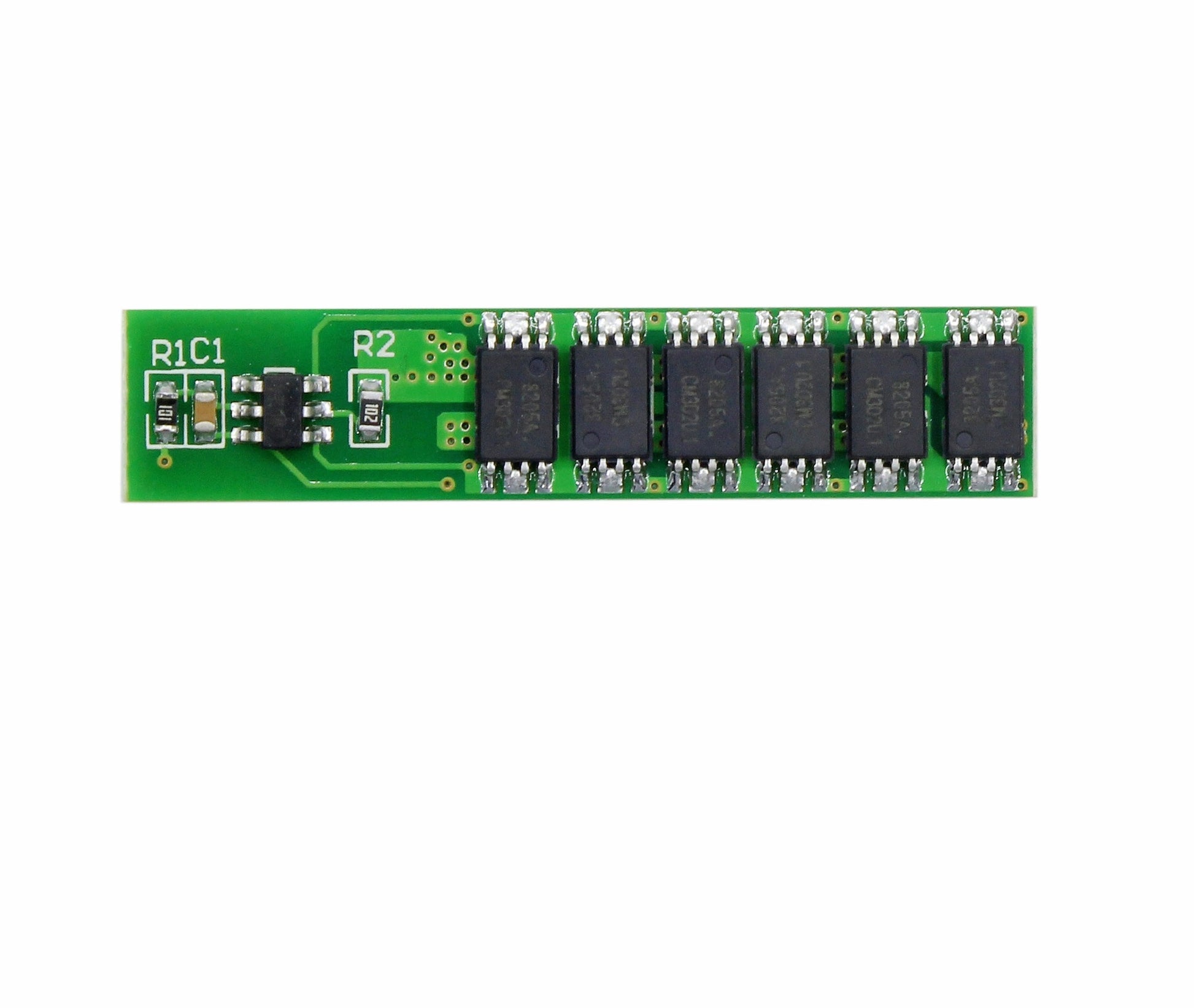

1S 15A 3.7V 6 MOS Li-ion Lithium Battery Protection Board BMS PCB Protection Board 18650 Charger Module for Li-ion Lithium Battery

1S 15A 3.7V 6 MOS Li-ion Lithium Battery Protection Board BMS PCB Protection Board 18650 Charger Module for Li-ion Lithium Battery

₹ 90.00
₹ 90.00
Sale Sold out
Shipping calculated at checkout.
  • Express Delivery FedEx
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • On Time Delivery
  • Worldwide Order Delivery
  • Delivery Location

Specification:

Parameter Details
Battery Type Li-ion / LiPo (3.7V nominal, 4.2V max)
Cell Configuration 1S (Single Cell)
Nominal Voltage 3.7V
Fully Charged Voltage 4.2V
Rated Charge Current 5A (recommended)
Rated Discharge Current 10A–15A (max continuous)
Overcharge Detection Voltage 4.25V ± 0.05V
Overcharge Release Voltage 4.15V ± 0.05V
Over-discharge Detection 2.5V ± 0.1V
Over-discharge Release 2.9V ± 0.1V
Overcurrent Protection 20A–30A
Short Circuit Protection Yes, automatic recovery
MOSFET Count 6 (for efficient load switching and protection)
Balance Function No (Not required for 1S)
Internal Resistance < 60 mΩ
Board Dimensions Approx. 45mm × 8mm × 3mm
PCB Type 2-layer, high-quality FR4
Application Flashlights, toys, power tools, DIY power banks



Features:

  • Designed for 1-cell 18650 lithium-ion battery.

  • High current capability up to 15A discharge.

  • 6 MOSFETs for better heat dissipation and stability.

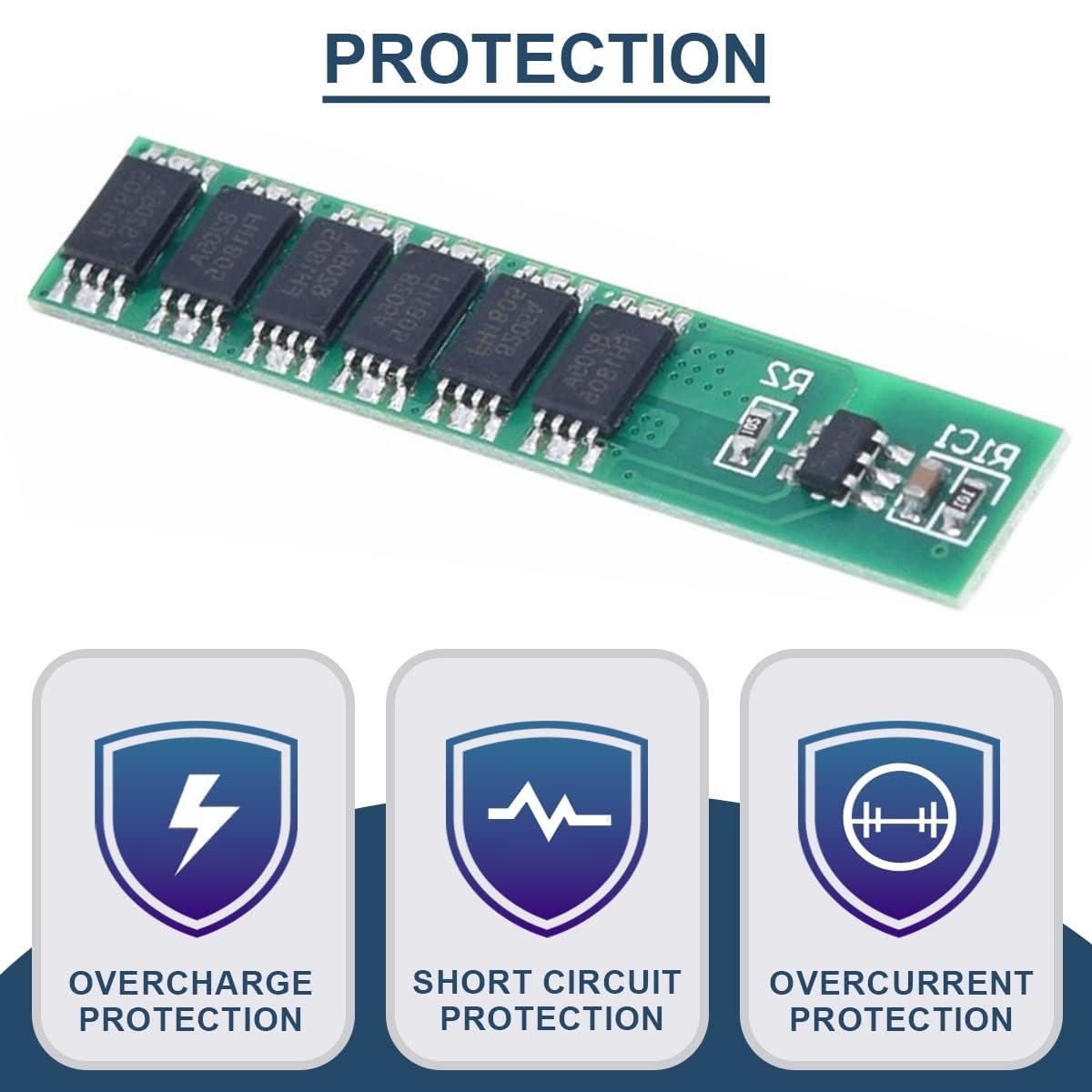

  • Overcharge, over-discharge, overcurrent, and short-circuit protection.

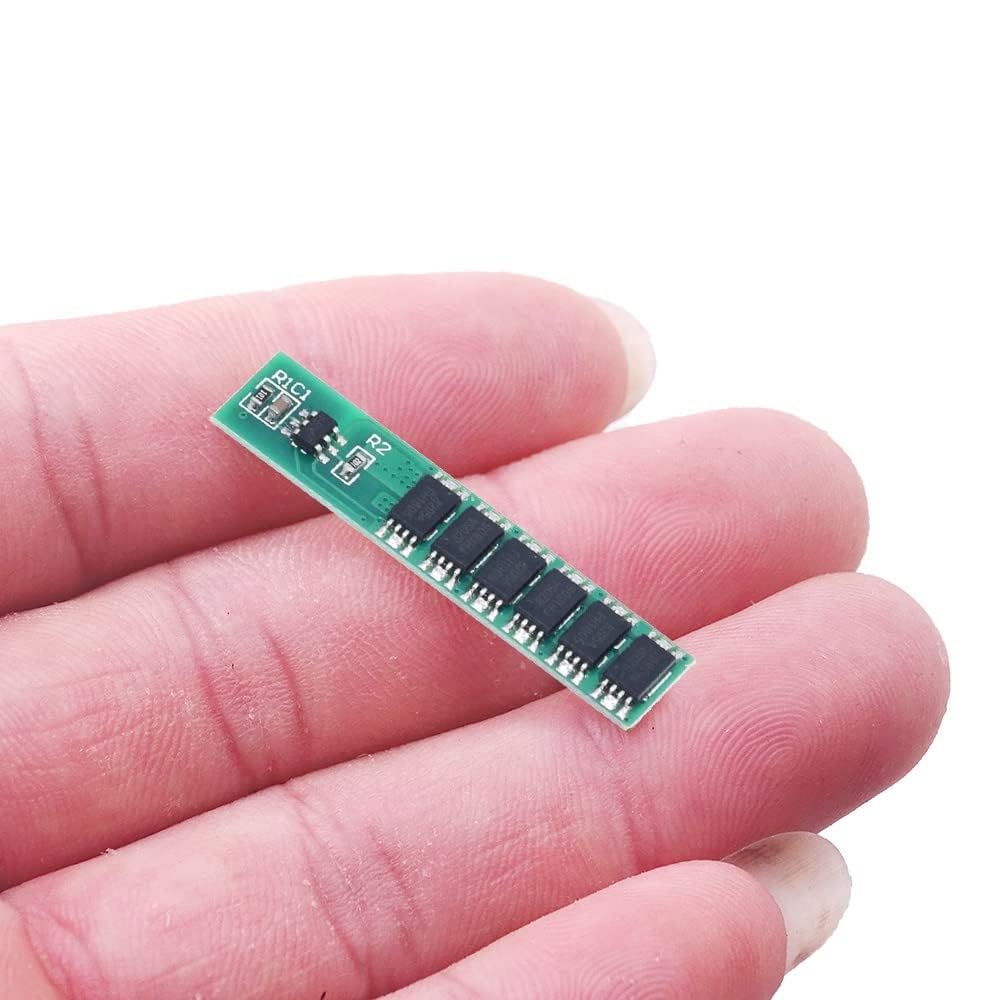

  • Compact and lightweight – ideal for small projects.

  • Easy to integrate into battery packs and modules.

Description:

This 1S 15A BMS (Battery Management System) Protection Board is designed to protect single 3.7V Li-ion or lithium polymer batteries. It offers overcharge, over-discharge, overcurrent, and short-circuit protection, ensuring safe and efficient battery operation. With a high discharge current capability of up to 15A and 6 integrated MOSFETs, it is suitable for high-drain applications such as DIY power banks, LED lighting, RC vehicles, and other portable electronics.
