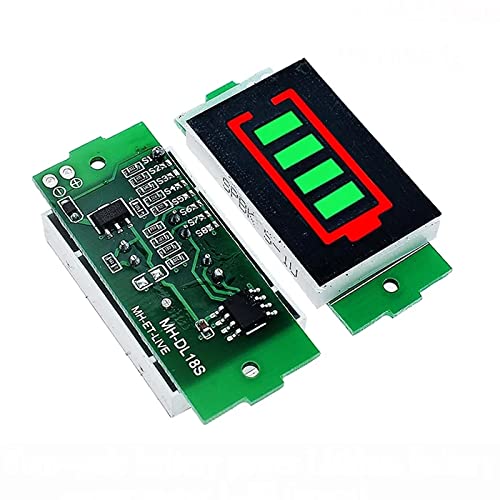

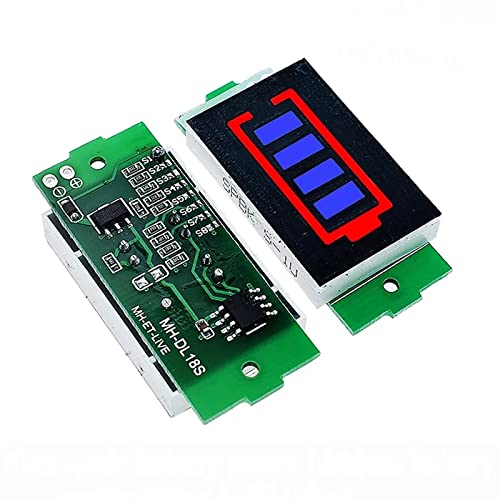

18650 Lithium Battery Capacity Indicator Module

18650 Lithium Battery Capacity Indicator Module

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Specification
Input Voltage Range 2.7V – 4.2V DC
Recommended Voltage 3.0V – 4.2V (single 18650 cell)
Display Type LED Bar Indicator (3, 4, or 5 LEDs)
LED Color Blue / Green / Red (varies by model)
Number of LEDs 4 or 5 (common configurations)
Indication Levels - 1 LED: ~ <3.3V - 2 LEDs: ~3.3–3.5V - 3 LEDs: ~3.5–3.7V - 4 LEDs: ~3.7–3.9V - 5 LEDs: ~4.0–4.2V
Current Consumption Typically < 20 mA (only when active)
Connection Interface 2-pin input (V+ and GND)

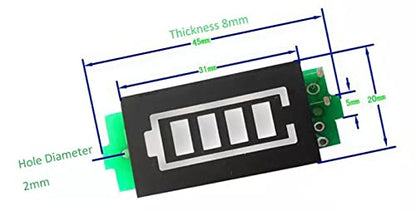

Module Size ~25mm x 15mm x 4mm (varies by version)
Working Temperature -20°C to +60°C
Mounting Type PCB mount or free wiring



Features:

  • Voltage Range: Usually supports 3.0V to 4.2V (some modules may support wider ranges like 2.5V to 5V).

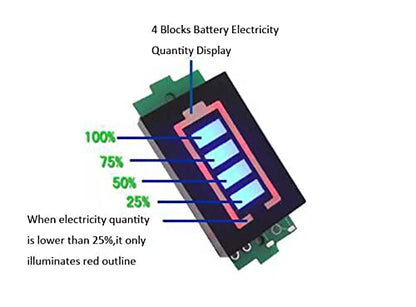

  • LED Display: Indicates battery level using a series of LED bars, typically 3 to 5:

    • 1 LED on: Low charge (≈ <3.3V)

    • 2 LEDs: Moderate charge

    • 3 LEDs: Medium-high charge

    • 4 LEDs: Nearly full

    • 5 LEDs: Fully charged (≈ 4.2V)

  • Input Terminals: + and − pins for connecting the battery.

  • Compact Design: Small PCB, ideal for integrating into battery enclosures or handheld devices.

Description:

A 18650 Lithium Battery Capacity Indicator Module is a compact electronic module designed to visually display the remaining charge or capacity of a single-cell 18650 lithium-ion battery (typically 3.7V nominal, 4.2V max when fully charged, and around 3.0V when discharged). It is commonly used in DIY electronics, battery packs, and portable power systems.
