1602 With I2C LCD Display Module 16x2 (Green)

1602 With I2C LCD Display Module 16x2 (Green)

₹ 80.00
₹ 80.00
Sale Sold out
Shipping calculated at checkout.
  • Express Delivery FedEx
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • On Time Delivery
  • Worldwide Order Delivery
  • Delivery Location

Specification:

Parameter Details
Display Type 1602 Alphanumeric LCD
Display Format 2 Lines × 16 Characters
Backlight Color Green with White Characters
Interface Type I2C (SDA + SCL)
I2C Address Default: 0x27 or 0x3F (can vary by module)
Operating Voltage 5V DC
Current Consumption ~20mA (with backlight ON)
Controller IC HD44780 (via PCF8574 I2C backpack)
Contrast Control Via onboard potentiometer
Mounting Holes Yes
Dimensions ~80mm × 36mm × 12mm (L×W×H)
Character Matrix 5x8 dot matrix per character
Viewing Angle Wide; readable at multiple angles



Features:

  1. 📊 Clear 16x2 Alphanumeric Display

    • Displays up to 32 characters in two lines, making it perfect for sensor data, system status, or menu navigation in embedded projects.

  2. 🔌 I2C Interface – Only 2 Pins Required

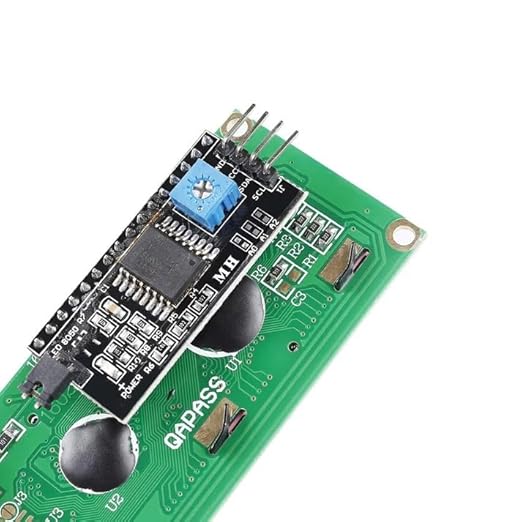

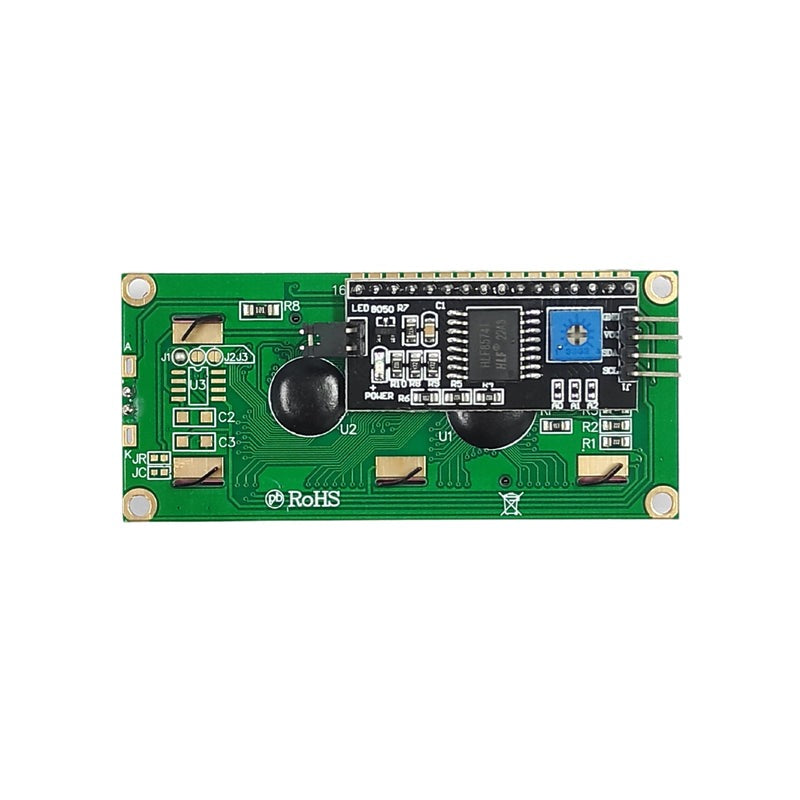

    • Built-in PCF8574 I2C backpack reduces wiring complexity from 12+ pins to just 2 (SDA & SCL), freeing up microcontroller pins for other uses.

  3. 🟢 Green LED Backlight with White Text

    • The high-contrast green backlight provides excellent readability in various lighting environments.

  4. 🎛️ Onboard Contrast Adjustment

    • Comes with a mini trimpot (potentiometer) to fine-tune character visibility and contrast as needed.

  5. 🔧 Easy to Connect with Arduino/Raspberry Pi

    • Fully compatible with popular libraries like LiquidCrystal_I2C for Arduino or i2c-tools in Raspberry Pi.

  6. 🧰 Durable and Compact Design

    • Compact size and standard mounting holes make it easy to embed into enclosures, dashboards, and panels.

  7. 💡 Low Power Consumption

    • Efficient display technology with low current draw, ideal for battery-powered applications.

  8. ⚙️ Plug & Play with Libraries

    • Supported by a wide range of example codes and libraries for quick integration into any project.

  9. 🎓 Ideal for Educational & DIY Use

    • Widely used in STEM kits, hobby electronics, robotic displays, clocks, and IoT systems.

  10. 📦 Compatible with I2C Address Scanning

    • If unsure of the I2C address, it can be easily found using I2C scanner sketches in Arduino IDE.

Description:

The 1602 LCD Display with I2C Interface is a compact, user-friendly 2-line, 16-character per line alphanumeric display module, ideal for displaying text, sensor data, menu interfaces, and more. Featuring a green backlight with white characters, it ensures excellent readability even in low-light conditions.

Unlike traditional 1602 displays that require 12+ connections, this version includes an integrated I2C (Inter-Integrated Circuit) adapter, reducing the required GPIO pins to just two (SDA & SCL). This makes it ideal for microcontroller platforms with limited digital I/O like Arduino, Raspberry Pi, ESP8266, ESP32, etc.

This module is widely used in electronics, robotics, DIY kits, and educational STEM projects due to its simplicity, compatibility, and low power consumption.
