Description:

A 12V 1-channel relay module is an electronic module that controls an electrical circuit with an electromagnetic switch. To turn on or off devices that operate at 10A or lower current, it can be controlled by a microcontroller, a switch, or other digital circuits.

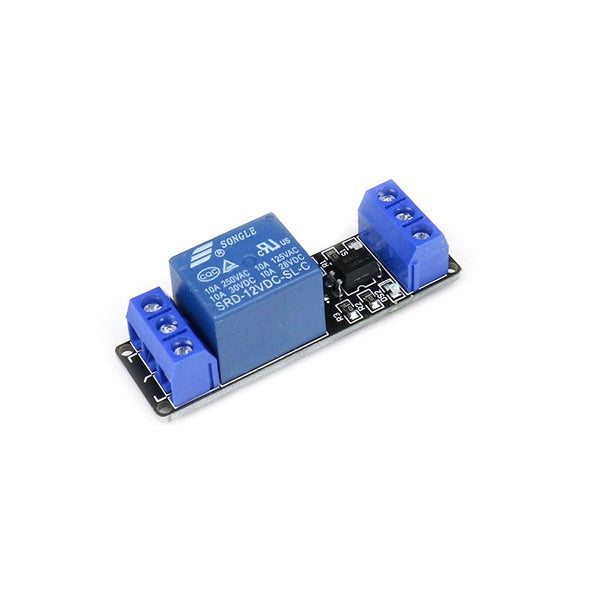

This is a small and simple one-channel relay board that runs on 12V. It can be used to directly operate one 240V power appliance from Arduino, Raspberry Pi, and other microcontrollers or low voltage circuits. Ideal for switching 240V appliances such as lights, fans, and so on, as well as high-power motors at lower voltages.

A 12V power source, a control circuit, and a relay with a switching capability of 10A are typical components of a relay module. You can use the control circuit to transmit a digital signal (high or low) to the relay, which will then open or close the circuit.

Relay modules are widely used in automation and control systems such as home automation, robotics, and industrial control. They are also utilised in automotive applications, such as regulating lighting and other electrical components in a vehicle.

Features:

• Relay Type: Electromechanical

• Operating Voltage: 12V DC

• Control Signal Voltage: 12V TTL logic level compatible

• Channel: 1 (Single relay)

• Max Switching Current: 10A @ 250V AC / 10A @ 30V DC

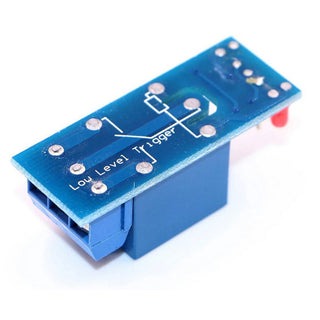

• Trigger Type: Active Low (triggered when IN pin is pulled low)

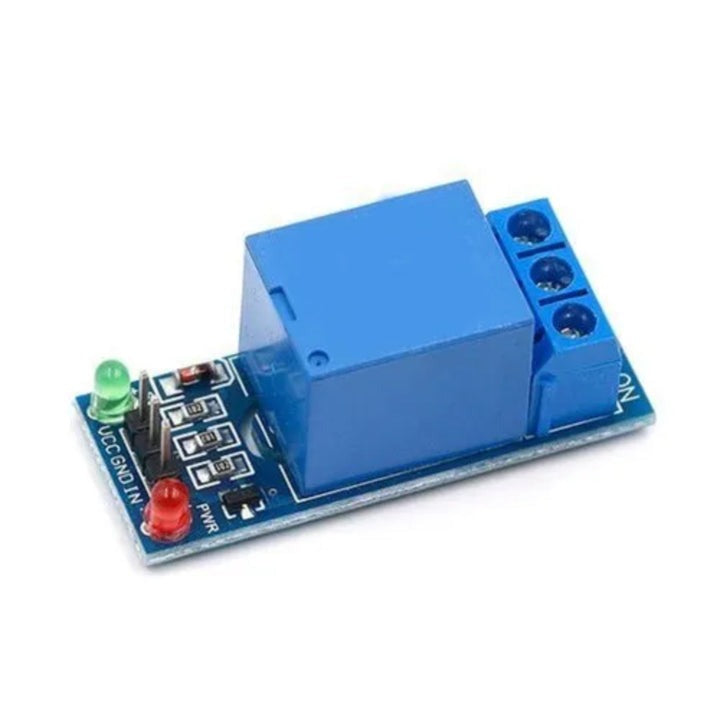

• Indicator LED:

• Power LED (shows 12V supply is connected)

• Trigger LED (indicates relay is activated)

Application:

• Home automation systems (fans, lights, appliances).

• IoT and Arduino projects.

• Industrial control systems.

• Smart switches and remote control systems.

• Robotics and sensor-based switching.
