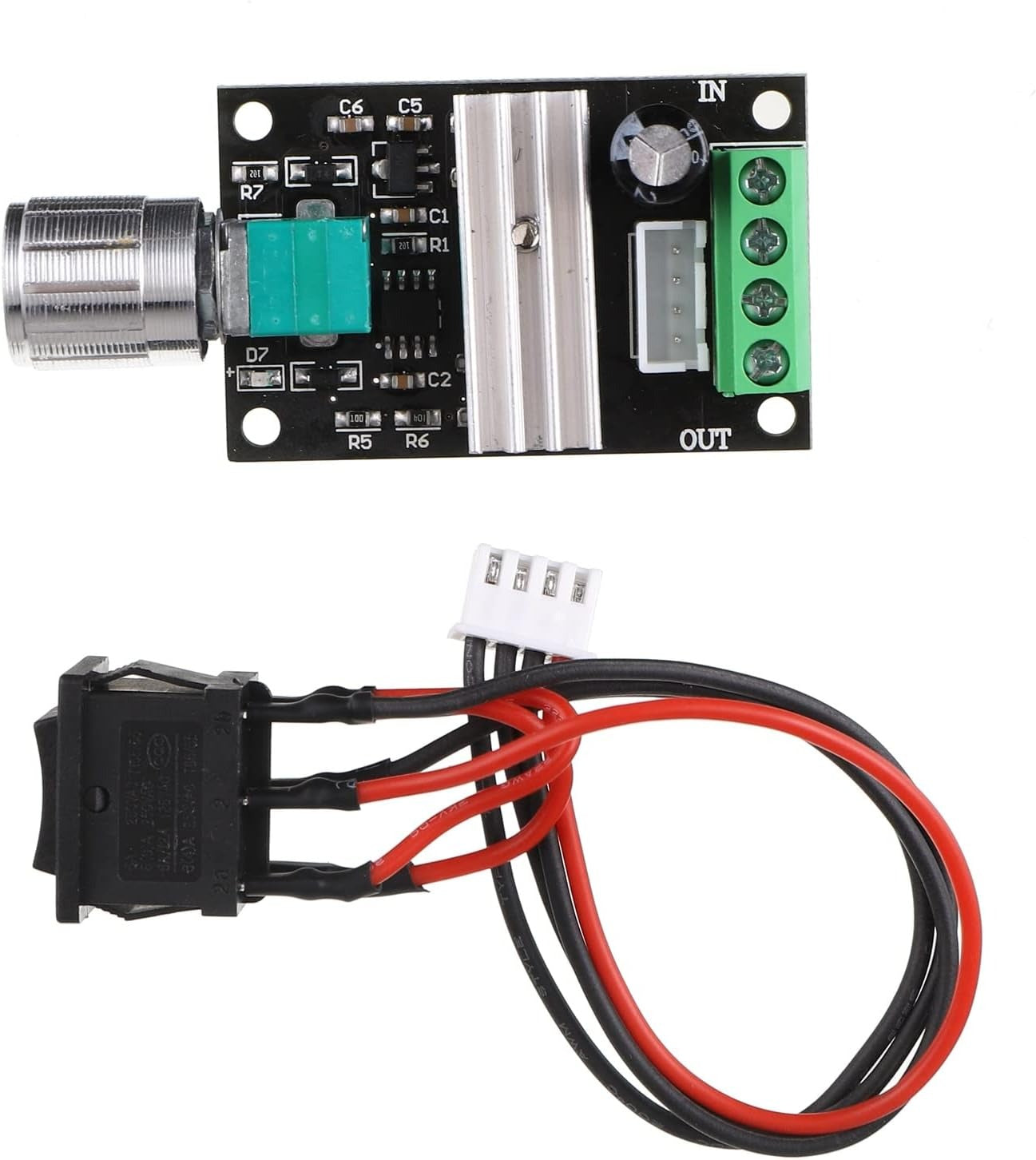

1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator

1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Description:

This 1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator allows controlling the speed of a motor with fully adjustable 0%-100%. The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.

The 1203B PWM DC Motor Speed Regulator is a compact and efficient solution for controlling the speed of DC motors in various DIY, hobbyist, and industrial applications. It uses Pulse Width Modulation (PWM) technology to deliver smooth and stepless motor speed control while maintaining torque and reducing energy loss.

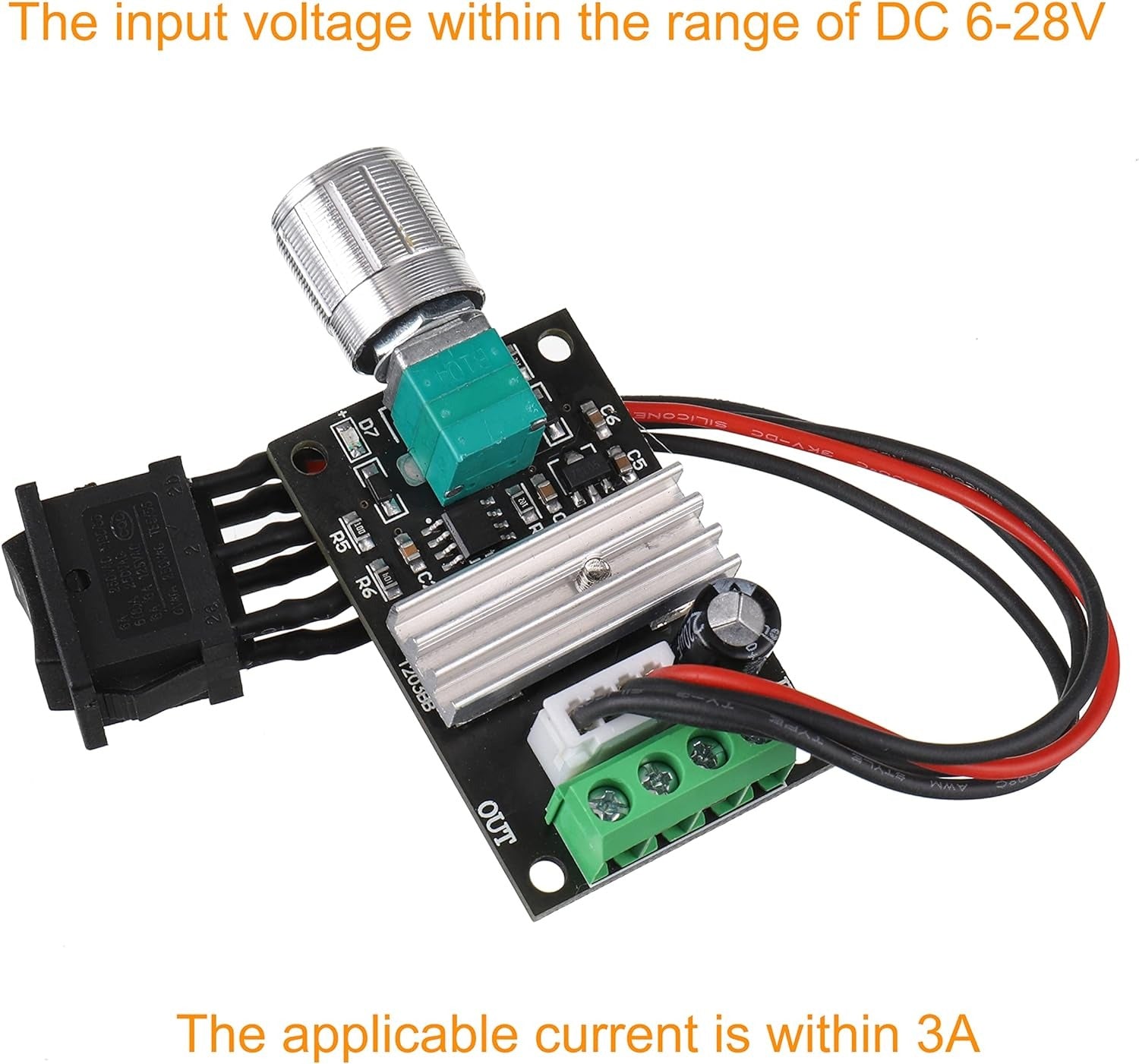

With support for input voltages from 6V to 28V DC and a maximum output current of 3A, this controller is ideal for a wide range of brushed DC motors. The onboard rotary knob allows you to precisely adjust motor speed from 0% to 100%.

Features:

  • Speed Adjustment Knob (Potentiometer):

    • Continuously variable motor speed control

    • Smooth and precise control from 0% to 100%

  • PWM Control:

    • Maintains motor torque while adjusting speed

    • Energy-efficient and reduces motor heating

  • LED Indicator:

    • Power status indicator (on some models)

  • Screw Terminals:

    • Easy wiring for input power and motor output

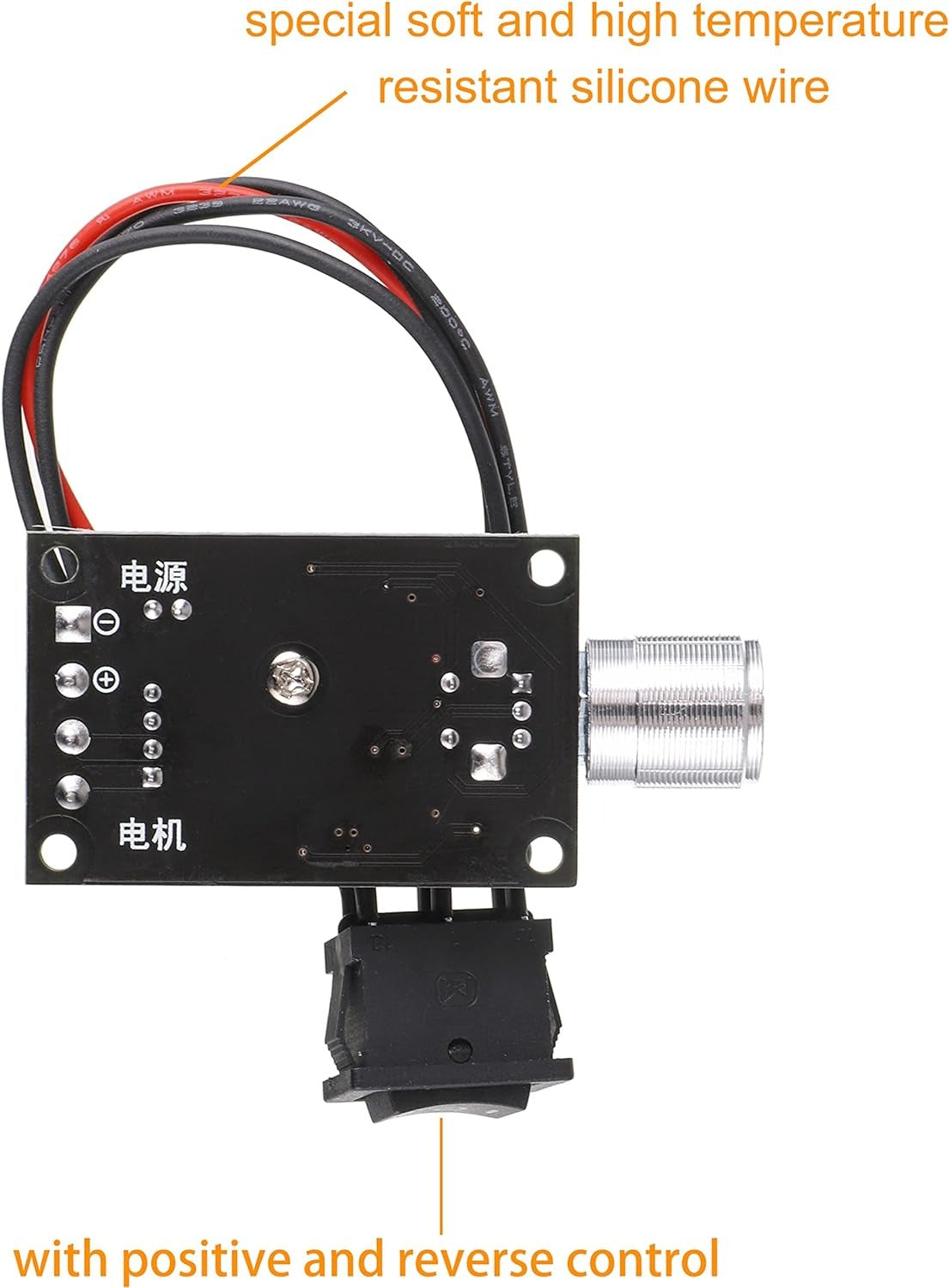

  • Reversible Motor Direction:

    • Can be implemented manually with wiring (not automatic or included in the board)

Application:

  • This PWM Speed controller is for DC 6V 12V 24V 28V Motor.

  • Small DC motor speed control

  • DIY electronics and robotics

  • Electric fans, pumps, or conveyors

  • Solar power systems

  • RC projects and model systems

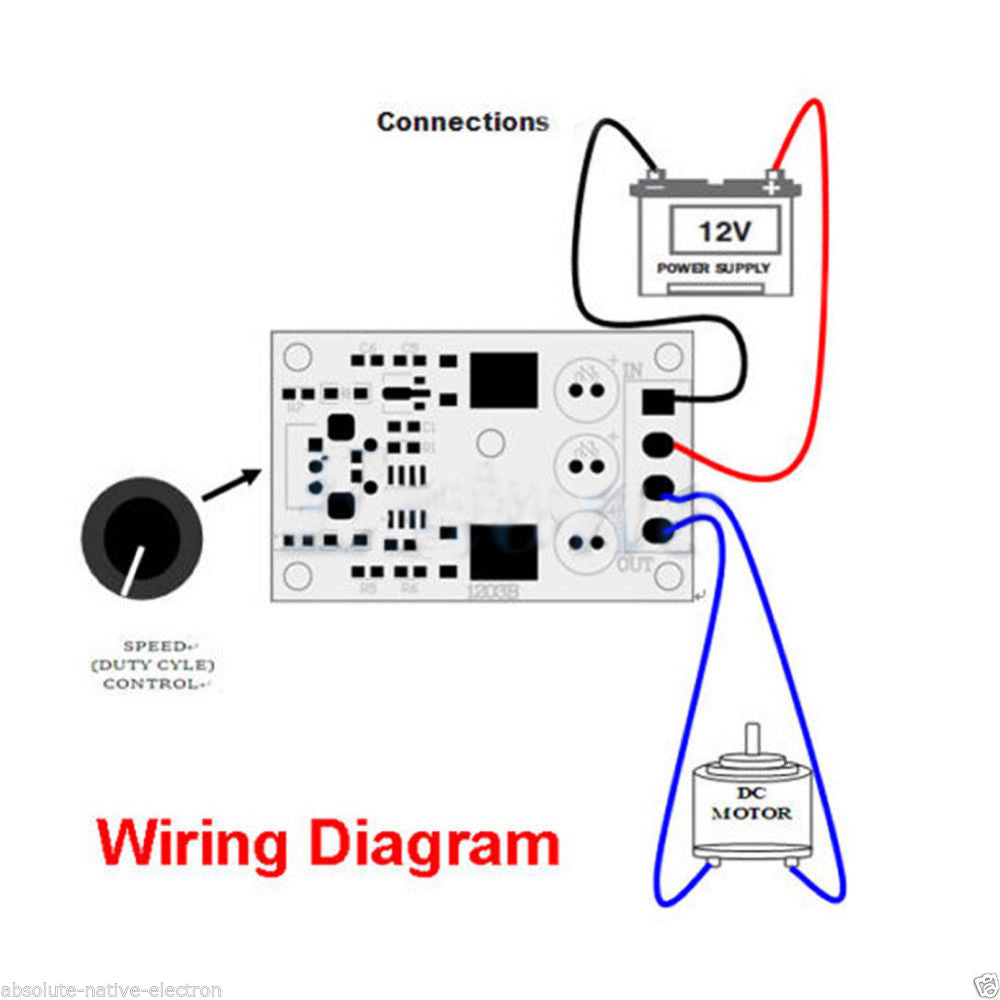

Pinouts:

  • Motor+: Motor Positive Terminal
  • Motor-: Motor Negative terminal
  • Power+: DC 6V – 28V
  • Power-: Gnd
  • Voltage range: DC6V – 28V
  • Current range: Within 3A
  • Switch function: None
  • Speed range: 0-100%
  • Dimension: 65 x 30 x 15mm
  • Weight: 25 g

Specification:

Item Type:

PWM Speed Regulator
Current Rating (A):

3
Voltage Rating (V):

6 to 28
Length (mm):

65
Width (mm):

32
Height (mm):

15
Weight (g):

25
Shipping Weight 0.03 kg
Shipping Dimensions 6 × 5 × 3 cm
