1.8 inch SPI TFT LCD Display Module TFT Display Module,Support Analog SPI and Hardware SPI,TFT LCD Display Color Display Module for ST7735 128x160 51/AVR/STM32/ARM 8/16 bit

1.8 inch SPI TFT LCD Display Module TFT Display Module,Support Analog SPI and Hardware SPI,TFT LCD Display Color Display Module for ST7735 128x160 51/AVR/STM32/ARM 8/16 bit

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Display Type TFT LCD (Color)
Display Size 1.8 inch diagonal
Resolution 128 x 160 pixels
Color Depth 65K colors (RGB565)
Driver IC ST7735
Interface Type SPI (Supports both Analog and Hardware SPI)
Operating Voltage 3.3V Logic (5V tolerant via onboard level shifter)
Backlight Control Yes (LED pin)
Viewing Direction Wide viewing angle

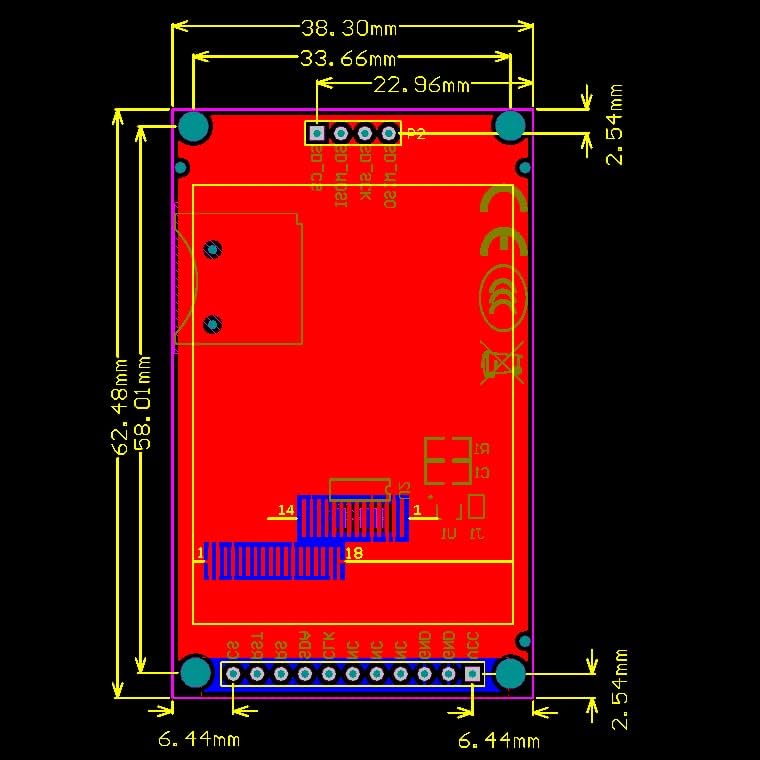

PCB Dimensions ~ 50mm x 35mm x 10mm
Touchscreen ❌ Not Included
Operating Temperature -20°C to +70°C
Mounting Holes Yes
Weight ~10 grams



Features:

  • Compact and Colorful: 1.8" display with 128x160 resolution supports rich color graphics.

  • SPI Communication: High-speed SPI interface minimizes required I/O pins.

  • ST7735 Controller: Well-documented driver IC, supported by libraries like Adafruit GFX and ST7735.

  • Multi-Platform Support: Compatible with STM32, AVR, ARM, 51 Series, ESP8266, and ESP32.

  • Backlight Control: Adjustable LED backlight via digital pin for brightness control.

  • Onboard Level Shifter: Accepts 5V input signals safely via built-in level converter.

  • Ready to Use: Pre-soldered header pins and compact PCB design make integration easy.

Description:

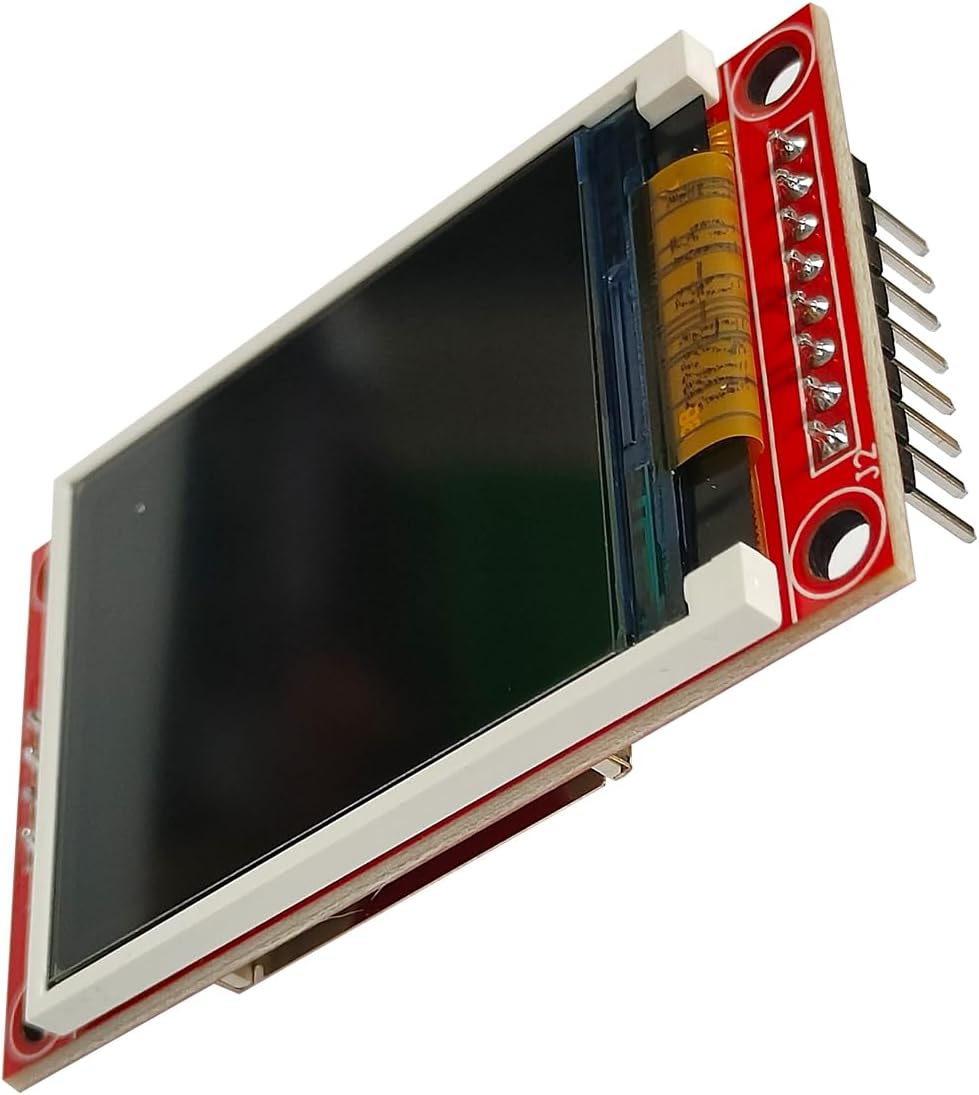

The 1.8 inch SPI TFT LCD Display Module is a compact and vibrant color display module based on the ST7735 driver IC. It supports both hardware SPI and analog SPI (bit-banging), making it versatile and easy to integrate with a wide range of microcontrollers like AVR, STM32, ARM, 51 Series, and ESP32.

This module delivers a 128x160 pixel resolution with 65K RGB full color, suitable for applications requiring visual output, graphical display, or user interfaces in compact embedded systems.
